STS680 | 49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB

  • MAP: $0.00 / EA
  • List Price: $779.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
Click image to enlarge
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB

STS680
49-120" ULTRA-SLIM SCISSOR DISPLAY WALL MOUNT, 250LB

  • UM : EA
  • Estimated Weight: 39.0

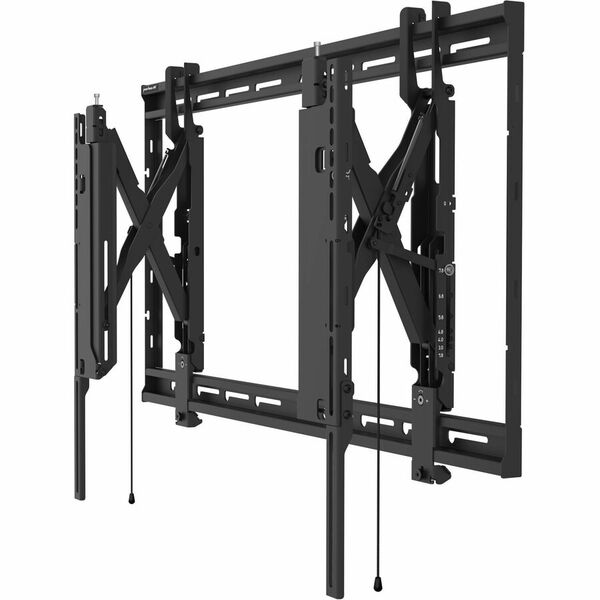

Peerless-AV STS680 is a universal ultra-slim scissor wall mount for large displays from 49" to 120"+ and up to 250 lb. Its extendable scissor-style design allows the display to pull out as far as 12.8" from the wall, giving installers direct access to cables, outlets, in-wall boxes, and AV components mounted behind the display.

Designed especially well for UC/VC systems, recessed display installations, corporate spaces, digital signage, and hospitality applications, the STS680 combines a slim installed profile with service access that a traditional fixed or tilt mount cannot provide. Its open-access wall design, post-installation leveling, side-to-side adjustment, and adjustable tilt help simplify installation and final display alignment.

The universal mounting system supports VESA patterns from 200 x 100 through 1000 x 400mm, or up to 1000 x 600mm using the included extenders. It is also TAA compliant and UL listed, making it a strong choice for professional commercial AV installations where accessibility, serviceability, and equipment storage behind the display matter.

Product Features

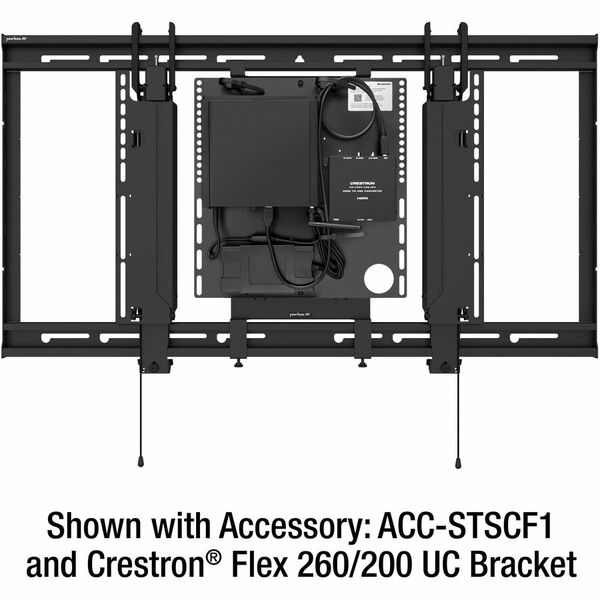

  • Compatible with the Crestron® Flex UC Brackets with ACC-STSCF1 accessory

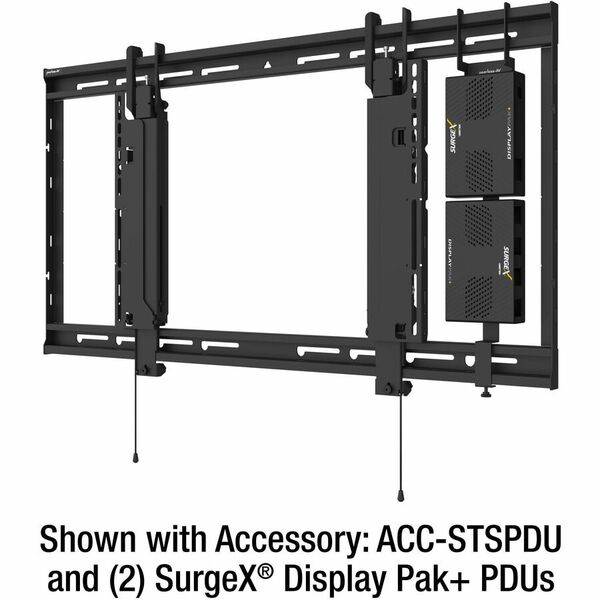

  • Compatible with SurgeX® DisplayPak+ with ACC-STSPDU accessory
  • Hook-and-Hang™ features allows the display to be easily installed by a single person
  • Open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes
  • Post-installation leveling and side-to-side adjustability features allow fine-tuning of the mounted display for the perfect display positioning
  • IncreLok™ tilt technology allows the tilt angle to be locked for the perfect viewing position while preventing tampering or unwanted adjustment
  • IncreLok™ depth adjustment enables the latching depth of the mount to be locked from 1.8"-7.8" (46-198mm), providing ample space for equipment mounted behind the display
  • Automatic spring locks with quick release cords simplify the installation and service of the display
  • Extendable adaptors allow the display to be pulled up to 12.8" (325 mm) from the wall, providing easy access to components and the back of the display

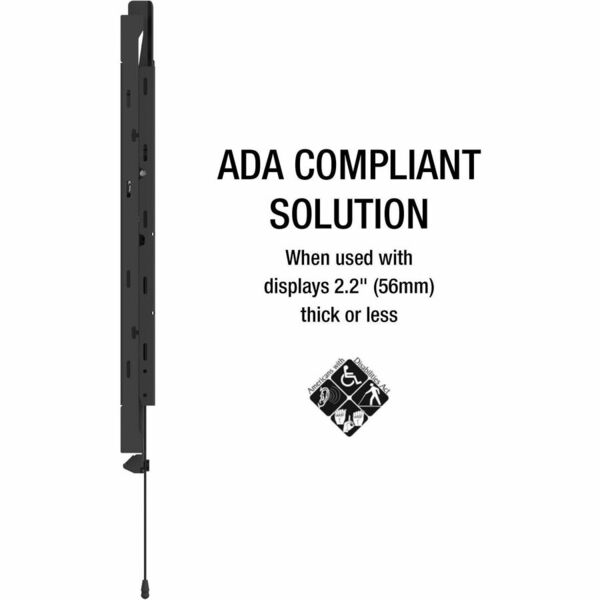

  • ADA compliant when used with displays 2.2" (56mm) thick or less
  • 1.8"-12.8" (46-325mm) display extension allows for post-installation servicing and component storage behind display
  • Universal mount fits displays with mounting patterns 200 x 100 to 1000 x 400mm (1000 x 600mm with included bolt-on extenders)
  • Optional IncreLok™ feature offers fixed tilt angles of 0°, 2.5°, 5°, 7.5°, 10°, 12.5° and 15°
  • ±1/2" (12mm) of post-installation leveling
  • 2° of plumb adjustment to keep displays level on uneven walls
  • Optional accessory: Universal AV Component Mount (ACC-UCM3) allows components to be installed, configured and cabled off-site, and quickly attaches to the mount, which reduces on-site installation time
