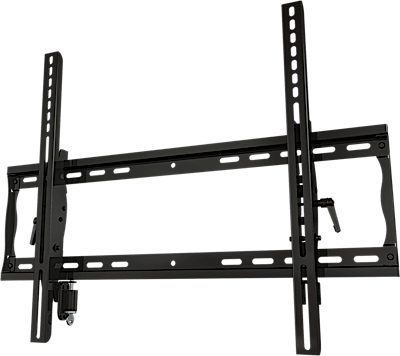

T55L | UNIVERSAL TILTING MOUNT WITH LOCK FOR 32" TO 80" FLAT PANEL SCREENS

  • MAP: $157.19 / EA
  • List Price: $195.59 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 6
  • Sign In or Submit RFQ for accurate lead times
UNIVERSAL TILTING MOUNT WITH LOCK FOR 32" TO 80" FLAT PANEL SCREENS
UNIVERSAL TILTING MOUNT WITH LOCK FOR 32" TO 80" FLAT PANEL SCREENS
Click image to enlarge
UNIVERSAL TILTING MOUNT WITH LOCK FOR 32" TO 80" FLAT PANEL SCREENS
UNIVERSAL TILTING MOUNT WITH LOCK FOR 32" TO 80" FLAT PANEL SCREENS

T55L
UNIVERSAL TILTING MOUNT WITH LOCK FOR 32" TO 80" FLAT PANEL SCREENS

  • UM : EA
  • Estimated Weight: 10.0

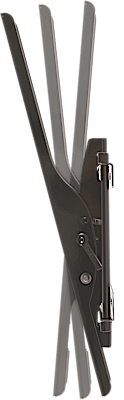

Adjustable tilt wall mount with Universal hole pattern to fit a wide selection of flat panel screens. Smooth tilt adjustments of 15° forward and 5° back with a locking knob for a variety of viewing angles. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Open wall plate design provides easy access to wiring.

Features:

  • Universal design
  • VESA compatible
  • One touch lock and key system for added security
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Open wall plate allows easy access for wiring
  • Lateral shift for perfect placement
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
TV size range 32" – 80"
Weight capacity 200lb (91kg)
Max mounting pattern 660x501mm
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
Depth from wall 2.2" (55.8mm)
Lateral adjustment varies with screen
Tilt +15°/-15°
Security feature one-touch lock and key system
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required HT4)
Stud spacing dual stud 16", 20", 24" on center
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 6.8lb (3.1kg)
Package specifications 28.5"x10.2"x3.2"
Color black
Warranty 10-years
