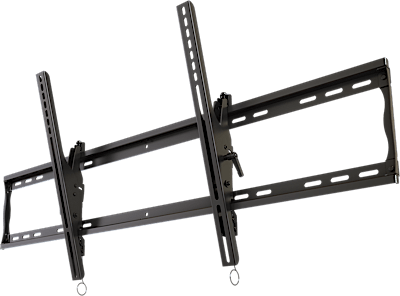

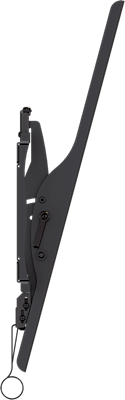

T80A | UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR 46IN TO 90IN FLAT PANEL SCREENS

  • MAP: $209.99 / EA
  • List Price: $262.79 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR 46IN TO 90IN FLAT PANEL SCREENS
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR 46IN TO 90IN FLAT PANEL SCREENS
Click image to enlarge
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR 46IN TO 90IN FLAT PANEL SCREENS
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR 46IN TO 90IN FLAT PANEL SCREENS

T80A
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR 46IN TO 90IN FLAT PANEL SCREENS

  • UM : EA
  • Estimated Weight: 14.0

Adjustable tilt wall mount with Universal hole pattern to fit a wide selection of flat panel screens. Smooth tilt adjustments of 15° forward and 5° back with a locking knob for a variety of viewing angles. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Open wall plate design provides easy access to wiring.

Features:

  • Post-installation leveling
  • Click in place screen placement without use of tools
  • Optional securing screws locks release latch for additional security
  • Universal design
  • VESA compatible
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Open wall plate allows easy access for wiring
  • Lateral shift for perfect placement
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
TV size range 46" – 90"
Weight capacity 300lb (136kg)
Max mounting pattern 1105x629mm
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm, 1000x600mm
Depth from wall 2.09" (53.0mm)
Lateral adjustment varies with screen
Tilt +15°/-5°
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required HT6)
Stud spacing dual stud 16", 20", 24" on center, triple stud on 16" or 20" center
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 9.3lb (4.2kg)
Package specifications 46.7"x10.2"x3.2"
Color black
Warranty 10-years
