TDH 3 | 3 WAY PASSIVE FULL RANGE SPEAKER, MAPLE FINISH

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
3 WAY PASSIVE FULL RANGE SPEAKER, MAPLE FINISH
3 WAY PASSIVE FULL RANGE SPEAKER, MAPLE FINISH
Click image to enlarge
3 WAY PASSIVE FULL RANGE SPEAKER, MAPLE FINISH
3 WAY PASSIVE FULL RANGE SPEAKER, MAPLE FINISH

TDH 3
3 WAY PASSIVE FULL RANGE SPEAKER, MAPLE FINISH

  • UM : EA

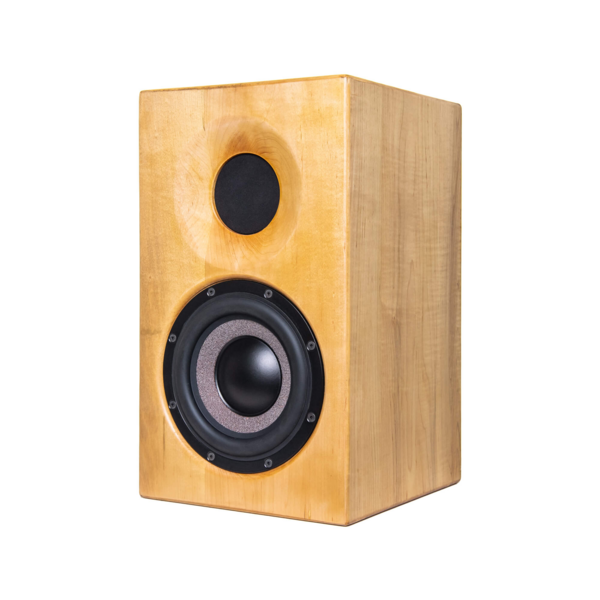

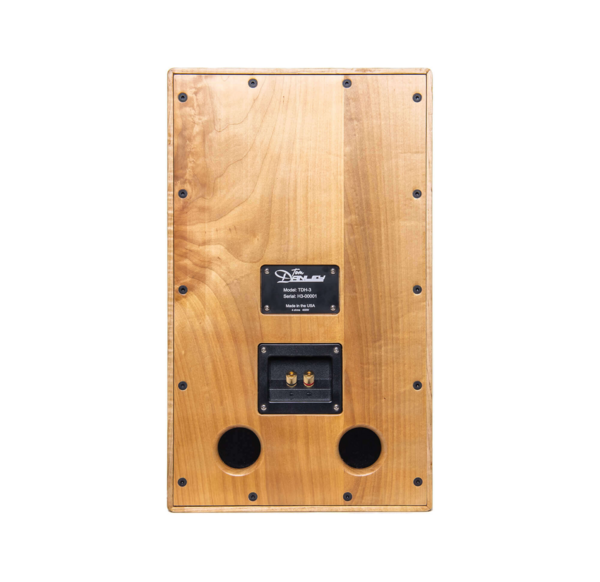

The TDH 3 by Danley Sound Labs features a solid wood cabinet designed for optimal acoustic performance and a natural finish. The speaker measures 500 mm in height and includes a 5-inch coaxial driver for high and mid-frequency reproduction, coupled with an 8-inch high-power woofer providing low-frequency output.

Intended for home audio applications, the TDH 3 combines these components to deliver a full-range sound profile suitable for music listening, audio mastering, and multimedia use.

Operating Mode Three-way single channel or bi-amplified
Operating Range 35 Hz – 20 kHz ±10 dB
Coverage Pattern 100° x 100°
Transducers Low 1×8”, Mid 1×5”, High 1×1”
Power Handling 200 W continuous, 800 W peak
Sensitivity 85 dB (2.83V @1m)
Maximum SPL 108 dB continuous, 114 dB peak
Impedance 8ohm
Recommended Power Amplifier 400 W @ 8ohm
