TLM-870A |

  • MAP: $45.76 / EA
  • List Price: $52.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

TLM-870A

  • UM : EA
  • Estimated Weight: 1.0

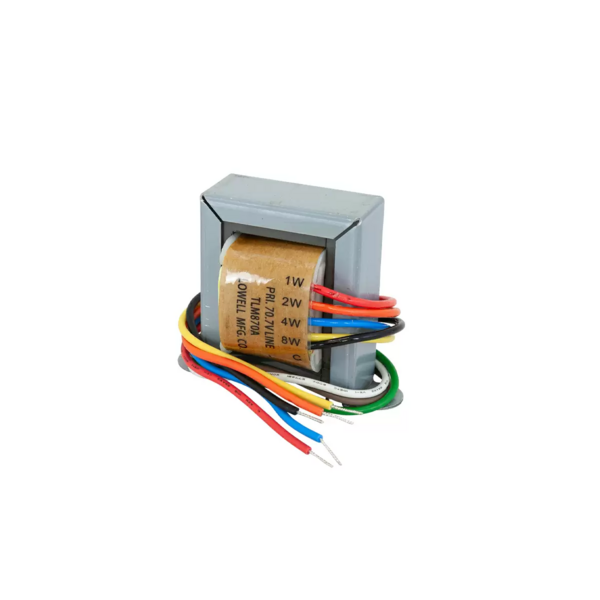

Line-matching 8W transformer for high quality audio systems and general purpose paging applications where wide frequency response, low insertion loss, and high power handling are critical considerations. The TLM series features the industry standard open-housing design and color-coded leads for fast installation.

  • Primary Voltage:  70V
  • Power Rating:   8W
  • Primary Taps:  1, 2, 4, 8W
  • Secondary Impedance:  8, 4 ohms
  • Frequency Response:  50Hz–15kHz (±1dB)
  • Lead Length:  8 in.
  • Leads:  Color-coded
  • Unit Size:  2.34 in. x 2.90 in. x 1.65 in.
