TLS-10070A |

  • MAP: $234.96 / EA
  • List Price: $267.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

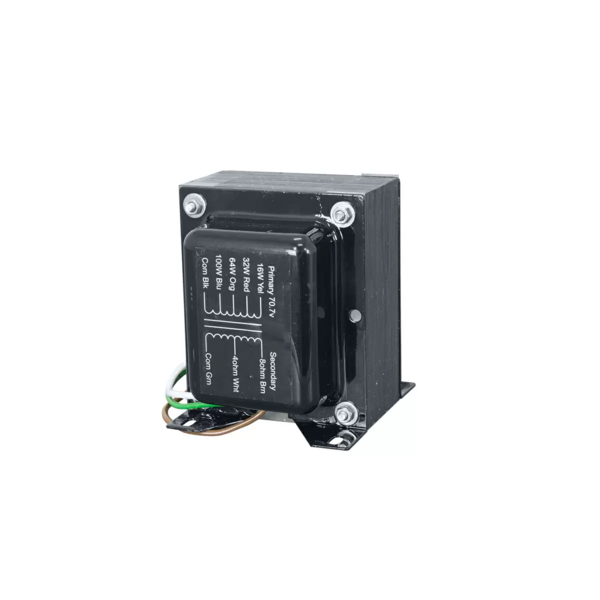

TLS-10070A

  • UM : EA
  • Estimated Weight: 8.0

Lowell premium 20/20 line matching 100W transformer provides true 20Hz–20kHz performance allowing a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system with the benefit of easier wiring layout, less expensive wire, and reduced labor. The transformer's full frequency response combined its high power handling allow a driver to operate at full potential while providing a stable load to the amplifier.

  • Primary Voltage:  70V
  • Power Rating:   100W
  • Primary Taps:  16, 32, 64, 100W
  • Secondary Impedance:  8, 4 ohms
  • Frequency Response: 20Hz–20kHz (±1dB)
  • Lead Length:  18 in.
  • Leads:  Color-coded
  • Unit Size:  4.125 in. x 3.437 in. x 4.125 in.
