TP63A | UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR PORTRAIT MOUNTING OF 37? TO 70? FLAT PAN
TP63A
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR PORTRAIT MOUNTING OF 37? TO 70? FLAT PAN
Click image to enlarge
TP63A
UNIVERSAL TILTING MOUNT WITH POST INSTALLATION LEVELING FOR PORTRAIT MOUNTING OF 37? TO 70? FLAT PAN
- UM : EA
- Estimated Weight: 9.2

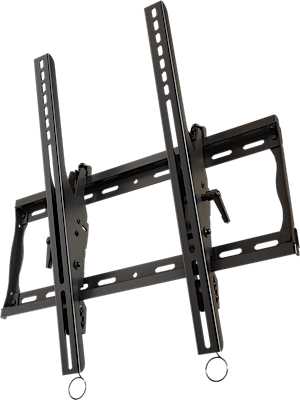

Vertically adjustable tilting wall mount in portrait orientation with Universal hole pattern to fit a wide selection of flat panel screens. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Open wall plate design and kickstand feature provides easy access to wiring.
Features:
- Universal design
- VESA compatible
- Post-installation leveling
- Click in place screen placement without use of tools
- Portrait orientation
- Pre-tensioned tilt mechanism for smooth adjustment
- Open wall plate allows easy access for wiring
- Lateral shift for perfect placement
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
| TV size range | 37" – 70" |
|---|---|
| Weight capacity | 200lb (91kg) |
| Max mounting pattern | 452x629mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 200x600mm, 400x600mm |
| Depth from wall | 2.2" (55.8mm) |
| Lateral adjustment | varies with screen |
| Tilt | +15°/-5° |
| Mounting surface | wood stud, concrete, cinder block or metal stud (accessory required HT6) |
| Stud spacing | dual stud 16" |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 9lb (4kg) |
| Package specifications | 28.5"x10.2"x3.2" |
| Color | black |
| Warranty | 10-years |
×
×
