TR-701 | ENCORE BELTPACK: 1CH, IFB, LISTEN ONLY

TR-701
ENCORE BELTPACK: 1CH, IFB, LISTEN ONLY

MAP: $495.00 / EA
List Price: $495.00 / EA
Log in to see if custom discounts apply
Case Quantity: 0
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

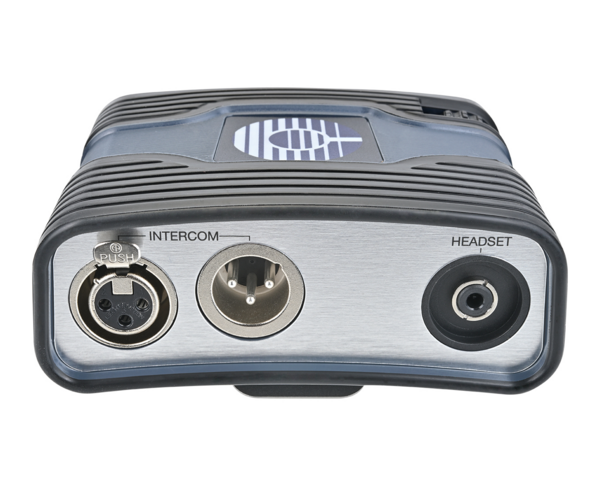

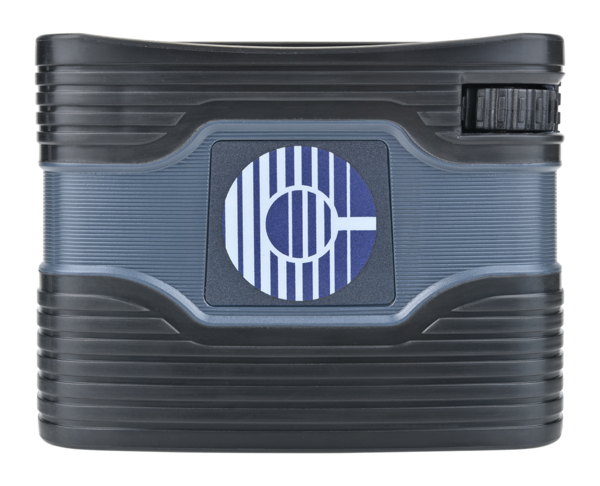

TR-701
ENCORE BELTPACK: 1CH, IFB, LISTEN ONLY

UM : EA

The TR-701 is a 2-wire IFB talent listen-only beltpack featuring volume control and a call light. It provides audio output with high headroom, low noise, and a shaped frequency response designed for clear audio reproduction.

For estimating power requirements of analog partyline systems including the TR-701, refer to the Encore Power Supply Calculator.

Features:

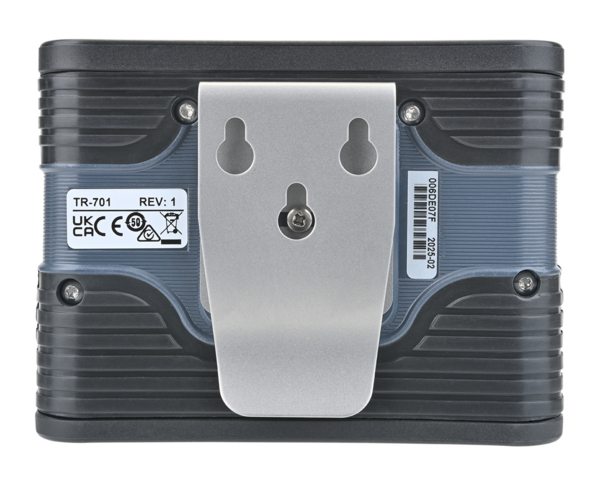

2-wire IFB talent beltpack with BP-Mount
Visual LED indication on top of keypad
Power LED (green) and Call Signal LED (amber)
Listen only with call light
Tactile buttons for Call and Talk
Recessed rotary volume control with 270° rotation range and end stops

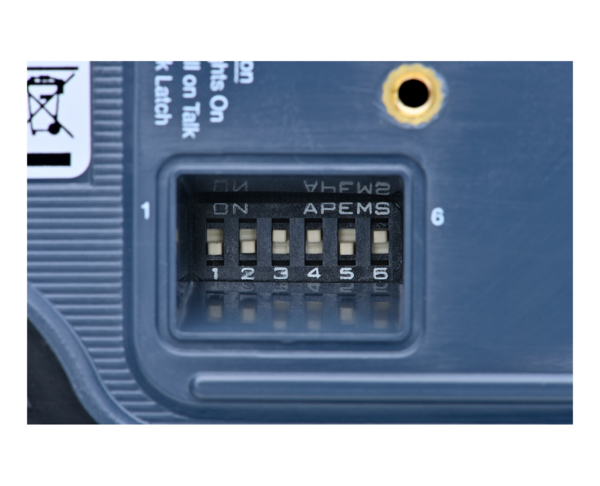

Concealed programmable DIP Switches
Option to turn LEDs off
Option to turn headphone level off
Compatible with Clear-Com analog partyline systems
Low operating current for daisy-chaining
Rugged and strong construction
Clear-Com Sound for intelligible audio

Type	Dynamic or Electret
Impedance	30Ω or greater
Maximum Output Level	+20 dBm
Current Required	12mA Max
Frequency Response – Line to Headphone	150 – 20kHz ± 3dB
Headphone input from line – Audio Level (-9dBm Electret input)	3.5dBm
Headphone input from line – Distortion	<0.5%
Headphone input from line – Signal to Noise	>50dB
Power Indicator	Green LED
Call Indicator	Orange LED

TR-701 PDF
View / Download
