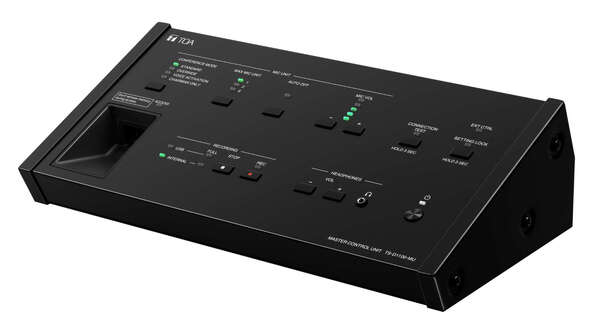

TS-D1100-MU | MASTER CONTROL UNIT

The TS-D1100-MU Master control unit for TOA's Digital conference system is designed to be used by way of simple connections to its Conference Units (*1) using CAT5e STP LAN cables. The Master control unit is also equipped with a recording function, PC control (*2), and one-touch connection confirmation capability. Up to 32 Conference units can be connected in a simple daisy chain configuration. However, for further expansion, up to 5 TS-D1000-SU Sub control units can be added to the system, making it possible to connect as many as 246 Conference units in one fully integrated conference system. Connection to a PC enables audio input and output during Web meetings and conferences, providing participants with clear, easy-to-hear audio. The TS-D1100-MU is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
(*1) Collective name of the 4 models: TS-D1000-CU Chairman Unit, TS-D1000-DU Delegate Unit, TS-D1100-MC Microphone Unit and TS-D1100-SP Speaker Unit
(*2) Relevant control software is supplied on a custom-made basis.

• USB Audio In/Out (USB 2.0 type-B port)
• Supports up to 32 conference units

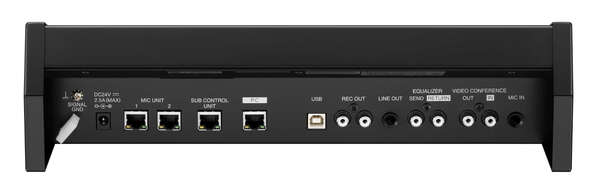

• Mic In, AUX In, Line Out, Rec Out, Headphone monitor out, EQ In/Out

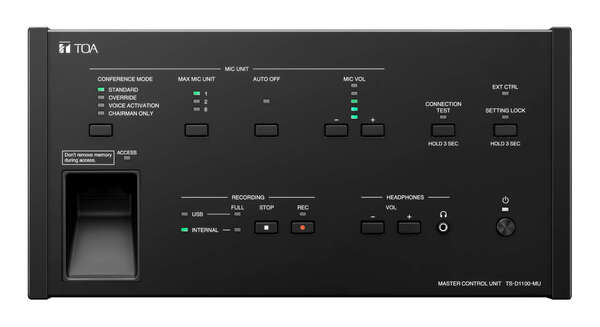

• Function setting : Number of open microphones, Auto mic-off function, Microphone priority selector
• Rack-mountable with optional MB-TS920 bracket
