TU55 | ULTRA-FLAT TILTING MOUNT FOR 32" TO 60" FLAT PANEL SCREENS
TU55
ULTRA-FLAT TILTING MOUNT FOR 32" TO 60" FLAT PANEL SCREENS
Click image to enlarge
TU55
ULTRA-FLAT TILTING MOUNT FOR 32" TO 60" FLAT PANEL SCREENS
- UM : EA
- Estimated Weight: 8.0
Super slim universal design holds flat panel screens only .97″ (24.6mm) from wall. A perfect match for today’s slim TVs. Post-installation leveling feature allows for perfect screen positioning even when ceiling is not perfectly level. Quick and secure “hook and click” installation with built-in kickstand feature that allows easy access for wiring.
Features:
- Post-installation leveling
- Universal design
- VESA compatible
- Ultra-flat design holds screen only 0.97″ from wall for a clean look
- Quick and secure “hook and click” installation
- Lateral shift for perfect placement

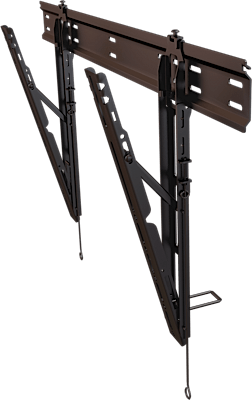

- Built-in kickstand feature allows easy access for wiring
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
| TV size range | 32" – 60" |
|---|---|
| Weight capacity | 100lb (45kg) |
| Max mounting pattern | 602x402mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm |
| Depth from wall | 0.97” (24.6mm) |
| Lateral adjustment | varies with screen |
| Tilt | 15°/-0° |
| Mounting surface | wood stud, concrete, cinder block or metal stud (accessory required HT4) |
| Stud spacing | dual stud 16” on center |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 6lb (2.7kg) |
| Package specifications | 29"x9"x2" |
| Color | black |
| Warranty | 10-years |
×
×
×
