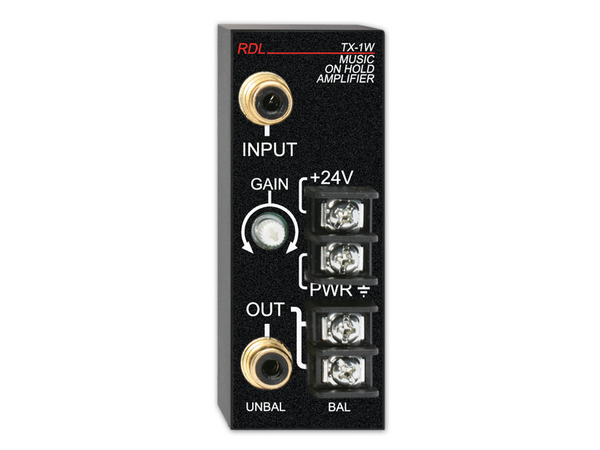

TX-1W | MUSIC ON HOLD AMPLIFIER - 1 WATT
TX-1W
MUSIC ON HOLD AMPLIFIER - 1 WATT
TX-1W
MUSIC ON HOLD AMPLIFIER - 1 WATT
- UM : EA
- Estimated Weight: 0.4
The TX-1W is the ideal choice in on-site installations where the central telephone switching unit needs to be fed with music, voice or combined music/voice signals.
There is a wide variety of telephone instruments in use. When a caller is placed on hold, the audio quality perceived is affected by the caller''s own telephone, as well as the telephone lines, central switch and on-site equipment. Due to these variations, conventional audio amplifiers used as music-on-hold drivers frequently produce annoying artifacts at the caller''s earpiece. Attempts to reduce listener fatigue through high-frequency rolloff alone tend to produce a muffled, tired sound.
The TX-1W features a spectral response specifically characterized to match the broadest variations in telephone audio distribution, producing a lively, crisp, interesting sound without the annoying resonances and distortions prone to creating listener fatigue.
Features:
- Feed Audio into Telephone Equipment Music-on-Hold Input
- Adjustable Audio Level
- Optimized Sound Quality
- Unbalanced Output, up to 1 Watt
- Balanced Transformer driver Output
- Ultra Compact Size
| Input | Unbalanced via standard phono jack |
|---|---|
| Input Level | -10 dBV nominal |
| Gain | -10 dB to +25 dB (adjustable) |
| Frequency Response | Tailored to phone systems within 20 Hz to 20 kHz spectrum |
| THD+N | < 0.5% (1 kHz @ Maximum Output 1 W)< 0.2% (1 kHz @ +4 dBu) |
| Residual Noise | < -75 dB (referred to 600 Ω +4 dBu, or to 1 W RMS) |
| Outputs | 1 Balanced @ 600 Ω to drive transformer inputs 1 Unbalanced adjustable line-level to 1 W |
| Ambient Operating Environment | 0° C to 40° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 150 mA |
| Package Type | Cardboard Box |
| WEEE weight | 0.215 lbs. |
| Shipping Weight | 0.275 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 2 x 2 x 4 in. |
