TX-A2 | AUDIO CONVERTER – BALANCED TO UNBALANCED - TERMINALS, DUAL-RCA
TX-A2
AUDIO CONVERTER – BALANCED TO UNBALANCED - TERMINALS, DUAL-RCA
TX-A2
AUDIO CONVERTER – BALANCED TO UNBALANCED - TERMINALS, DUAL-RCA
- UM : EA
- Estimated Weight: 1.0
The TX-A2 is the ideal choice in installations requiring passive isolation and level attenuation between a professional balanced line-level mono source and consumer equipment unbalanced inputs.

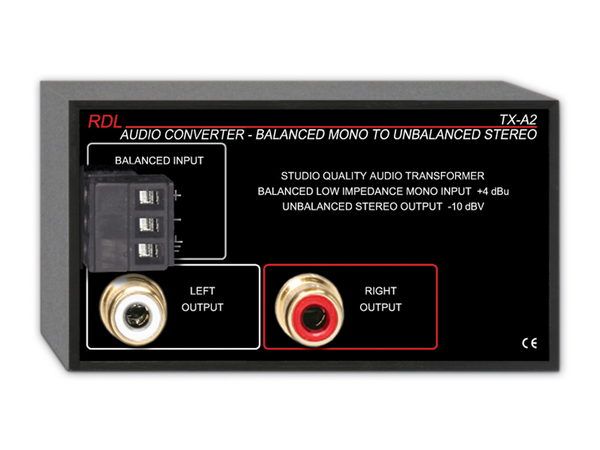

The TX-A2 is a complete unbalanced line-level audio output module. The front panel provides a detachable terminal block for connection of a balanced +4 dBu audio source. The input signal is coupled to two front-panel gold plated RCA jacks through a studio-quality isolation transformer. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Both output jacks may be used to feed two mono equipment inputs or one stereo input. A single output jack may be used for mono. Shielding is provided by the TX-A2''s heavy duty aluminum enclosure.
Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.
Features:
- Unbalanced Audio Outputs from a Balanced Line
- Balanced to Unbalanced Conversion
- Mono Input to Stereo Output
- +4 dBu Input Level to -10 dBV Output Level
- Studio-Quality Transformer Isolation
- Passive Converter with Output Jacks
| Total Harmonic Distortion | <0.05% (20 Hz to 20 kHz, +4 dBu input) <0.01% (1 kHz) |
|---|---|
| Dimensions | 3.17" (8.05 cm) W 1.76" (4.47 cm) H 2.06" (5.23 cm) D3.17 x 1.76 x 2.06 in |
| Frequency response (line level) | 20 Hz to 20 kHz (±0.5 dB) |
| Output level | -10 dBV nominal |
| Output connectors (2) | Gold plated phono jacks |
| Input level | +4 dBu nominal +22 dBu max |
| Input connector 1 | Detachable terminal block |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.57 lbs. |
| Shipping Weight | 0.72 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Ambient Operating Environment | 0° C to 55° C |
