TX-AFC1F | BAL. TO UNBAL. AUDIO TRANSFORMER - XLR, PHONO

  • MAP: $134.20 / EA
  • List Price: $178.94 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

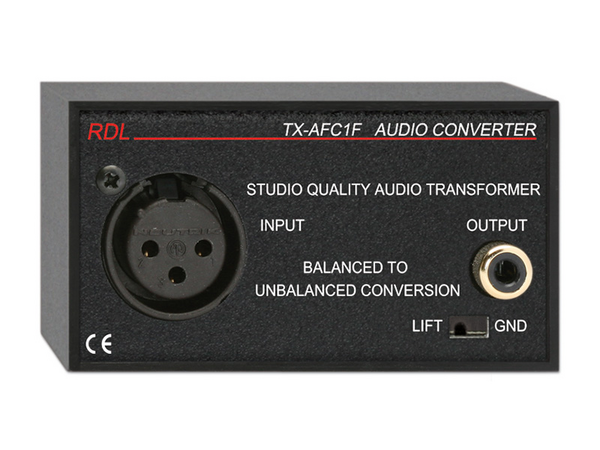

BAL. TO UNBAL. AUDIO TRANSFORMER - XLR, PHONO
Click image to enlarge

TX-AFC1F
BAL. TO UNBAL. AUDIO TRANSFORMER - XLR, PHONO

  • UM : EA

Features:

  • Studio Quality Bifilar Audio Transformer
  • Galvanic Isolation with the Convenience of RDL TXs
  • Connectorized with Gold Contacts on Input and Output
  • Balanced to Unbalanced Conversion
  • Professional to Consumer Level Conversion
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
  • THD: < 0.06% (50 Hz to 20 kHz, +4 dBu input)0.0015% (Typ. 1 kHz, +4 dBu input)
  • Input: +4 dBu (+22 dBu max.), 2.5 kΩ Bridging, XLR
  • Output Level: -10 dBV, Phono jack
  • CMRR: >85 dB (balanced input, 50 to 60 Hz)
Ambient Operating Environment 0° C to 55° C
Package Type Cardboard Box
WEEE weight 0.56 lbs.
Shipping Weight 0.62 lbs.
Tariff code 8543.70.9860
Package Dimensions 2 x 2 x 4 in.
Dimensions 3.17" (8.05 cm) W
1.76" (4.47 cm) H
2.06" (5.23 cm) D3.17 x 1.76 x 2.06 in
