TX-AFC1M | UNBAL. TO BAL. AUDIO TRANSFORMER - PHONO, XLR

  • MAP: $132.35 / EA
  • List Price: $176.47 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
UNBAL. TO BAL. AUDIO TRANSFORMER - PHONO, XLR

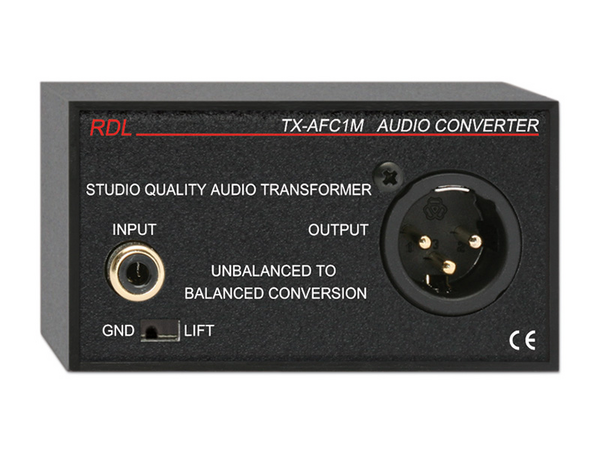

Click image to enlarge

TX-AFC1M
UNBAL. TO BAL. AUDIO TRANSFORMER - PHONO, XLR

  • UM : EA

Features:

  • Studio Quality Bifilar Audio Transformer
  • Connectorized Audio Format Conversion
  • Galvanic Isolation with the Convenience of RDL TXs
  • Gold Contacts on Input and Output
  • Unbalanced to Balanced Conversion
  • Unity Gain
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
  • THD: < 0.06% (50 Hz to 20 kHz, -10 dBV input)0.0015% (Typ. 1 kHz, -10 dBV input)
  • Input: -10 dBV (+22 dBu max.), 10 kΩ Phono jack
  • Insertion Loss: 0.25 dB (20 Ω source; 10 kΩ load)
  • Insertion Loss: 0.25 dB (20 Ω source; 10 kΩ load)
Ambient Operating Environment 0° C to 55° C
Package Type Cardboard Box
WEEE weight 0.565 lbs.
Shipping Weight 0.62 lbs.
Tariff code 8543.70.9860
Package Dimensions 2 x 2 x 4 in.
Dimensions 3.17" (8.05 cm) W
1.76" (4.47 cm) H
2.06" (5.23 cm) D3.17 x 1.76 x 2.06 in
