TX-MVX | MANUAL RMT CONTROLLED VIDEO SWITCH - 2X1 - BNC
TX-MVX
MANUAL RMT CONTROLLED VIDEO SWITCH - 2X1 - BNC
TX-MVX
MANUAL RMT CONTROLLED VIDEO SWITCH - 2X1 - BNC
- UM : EA

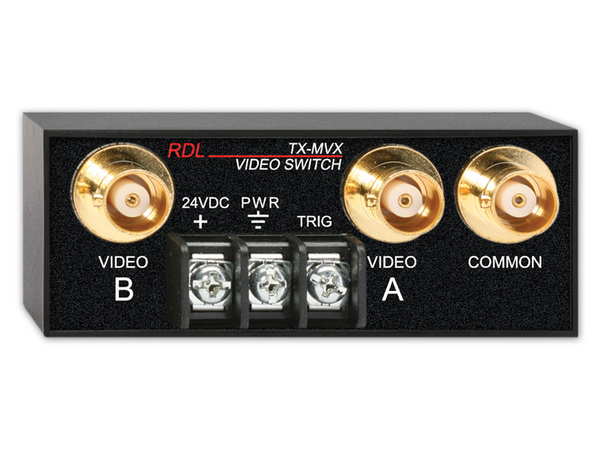

The TX-MVX is the ideal choice in installations where either a manual switch or an open-collector must switch video signals. VIDEO A is normally connected to COMMON. When the TRIG terminal is pulled to ground, VIDEO B is connected to COMMON and VIDEO A is disconnected. The TX-MVX utilizes a high-quality RF relay allowing the module to either route a single video source to one of two destinations, or switch two video sources to a single video destination. The actual switch (or other module actuating the switch action) may be located remotely from the TX-MVX.
Many RDL modules feature an open-collector SLAVE control terminal. These terminals may be used to control the TX-MVX. Alternatively, relay contacts on other equipment may also be used to control the TX-MVX.
Use the TX-MVX individually in NTSC or PAL systems, or combine it with other RDL products and various mounting accessories as part of a complete audio/video system.
| Input(s), Output(s) | BNC, ground-referenced |
|---|---|
| TRIG Input Current | 2 mA |
| TRIG Input Threshold | 2 Vdc |
| Ambient Operating Environment | -10° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |
| Package Type | Cardboard Box |
| WEEE weight | 0.24 lbs. |
| Shipping Weight | 0.3 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 2 x 2 x 4 in. |
