UA834V | IN-LINE ANTENNA AMPLIFIER FOR REMOTE MOUNTING FOR VHF (174-216 MHZ)
UA834V

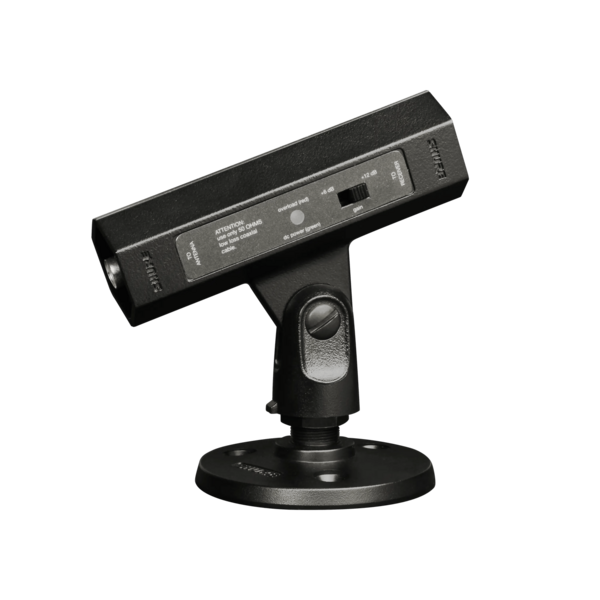

IN-LINE ANTENNA AMPLIFIER FOR REMOTE MOUNTING FOR VHF (174-216 MHZ)
Click image to enlarge
UA834V
IN-LINE ANTENNA AMPLIFIER FOR REMOTE MOUNTING FOR VHF (174-216 MHZ)
- UM : EA
- Estimated Weight: 2.0
The Shure UA834 is a low-noise, in-line VHF and UHF antenna amplifier. It is intended for remote-mounting antennas to a Shure receiver or Model UA845UWB, or UA844+ distribution amplifier in a large installation.
The unit receives power through its output port from the Shure receiver, UABIAST or distribution amplifier. When an antenna is remote mounted, the UA834 amplifies the received radio signals to compensate for insertion loss in the coaxial cable. A gain selector switch adjusts for longer lengths of coaxial cable.
Features:
- Compatible with the Shure Model UR4 ULX wireless microphone receiver and the Shure Model UA845UWB, or UA844+ Antenna Distribution System.
- Mountable on supplied desk-/wall-mount or on a microphone stand.
- Two-position gain selector switch to adjust for longer coaxial cable lengths (6dB position for cables under 7 1/2m [25 ft], 12dB position for cables over 7 1/2m [25 ft]
| Frequency band | 174-216 MHz |
|---|
×
