UA874XA | ACTIVE DIRECTIONAL ANTENNA WITH GAIN SWITCH. (902-960 MHZ)

  • MAP: $444.00 / EA
  • List Price: $623.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 12
  • Sign In or Submit RFQ for accurate lead times

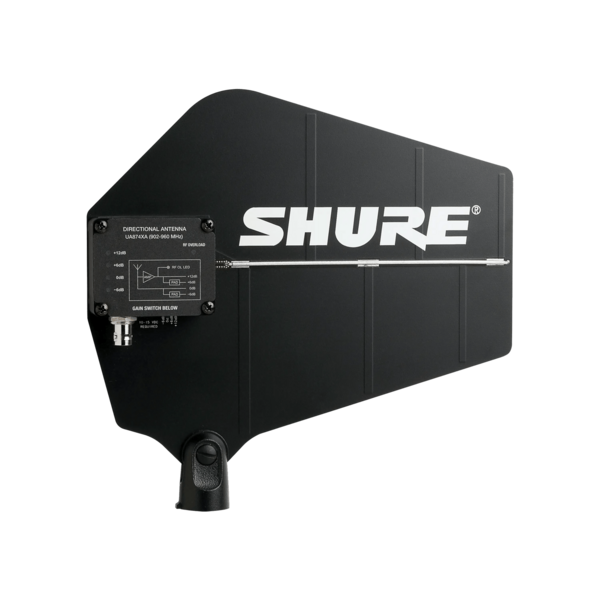

ACTIVE DIRECTIONAL ANTENNA WITH GAIN SWITCH. (902-960 MHZ)
Click image to enlarge

UA874XA
ACTIVE DIRECTIONAL ANTENNA WITH GAIN SWITCH. (902-960 MHZ)

  • UM : EA
  • Estimated Weight: 0.1

UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.

The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

Connector TypeBNC, Female
Impedance50 ohms
Power Requirements10 to 15 V DC bias from coaxial connection, 75 mA
Reception Pattern70 degrees
Third-order Intercept Point>30 dBm
Antenna Gain (On Axis)7.5 dBi
Signal Gain +/- 1dBSwitchable
Active: +12 dB, +6 dB
Passive: 0 dB, -6 dB
RF Overload LED Threshold-5 dBm
