Product Details

  • MAP: $775.00 / EA
  • List Price: $969.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
item image
Click image to enlarge

UND6IO-BT-C

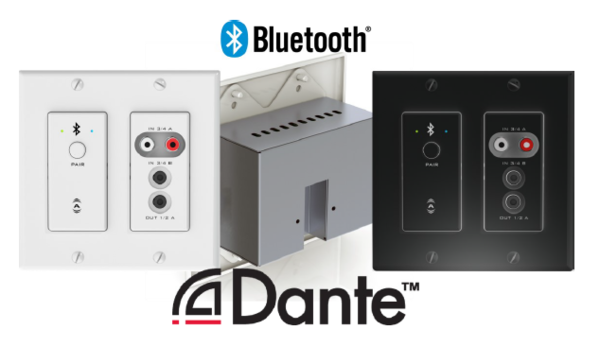

4X2 CHANNEL 2 GANG US WALL PLATE W/BLUETOOTH, RCA, 3.5MM I/O, POE - DANTE PROPRIETARY CONTROL

  • Unit Price: $775.00
  • UM : EA

The unD6IO-BT Dante/AES67 Audio Interface with Bluetooth® is a cost effective multi-IO wall box. The unD6IO-BT features stereo Bluetooth® wireless audio input connectivity along with two RCA line level inputs and a 3.5mm TRS line level input. A 3.5mm TRS line level output on the front is also included.  The unD6IO-BT is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable.  The unD6IO-BT's unique mix of consumer style wired and wireless connectivity allows easy connection of a wide variety of user devices to a Dante or AES67 network - with no concerns about ground loops or other audio problems common with consumer devices.

Key Features

  • Fully DDM (Dante Domain Manager) ready
  • Simple one button pairing/connect process, multiple pairing modes - manual (default), auto and exclusive
  • Defeatable pairing button for restricted use applications with 3rd party control systems
  • Customizable Bluetooth friendly name
  • Compatible with most smartphones, Apple iPads, and Android tablets - both media streaming and smartphone bridging
  • RCA inputs and 3.5mm input (each summed to mono) can be selected via software, individually or in combination, as an audio flow (see Audio Flow diagram below)
  • Ships with both black and white Decora plates and fascia inserts.
  • Product Accessory kit available
