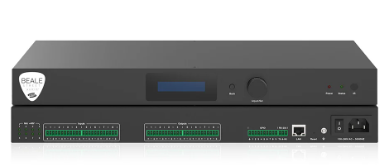

VAN-BAMX88 | 8×8 Audio Matrix Processor with DSP

VAN-BAMX88
8×8 Audio Matrix Processor with DSP

The BAMX88 is a versatile and powerful 8×8 audio matrix DSP-based processor designed for professional audio applications, offering eight microphone/line inputs and eight outputs for flexible routing and control.  Engineered for clarity and intelligibility, it features adaptive echo cancellation and adaptive noise suppression, ensuring pristine audio in even the most challenging acoustic environments.  Each input and output channel is equipped with an 8-band graphic equalizer, allowing precise tonal adjustments to optimize sound quality.  With its advanced signal processing capabilities and comprehensive input/output options, this processor is ideal for conference rooms, classrooms, houses of worship, and other demanding audio installations.

Key features:

• 8 mic/line balanced or unbalanced audio inputs
• 8 line balanced or unbalanced audio outputs
• 8×8 audio matrix with Digital Signal Processing (DSP)
• 8-band graphic EQ
• Mic Phantom Power options with 48V capabilities
• Volume, bass, treble, and mute controls
• Adaptive Echo Cancellation (AEC)
• Adaptive Noise Suppression (ANS)
• HPF and LPF
• Limit and auto mixer EQ functionality
• IR, RS232, and IP control with browser-based UI
• General Purpose Inputs-Outputs (GPIO)

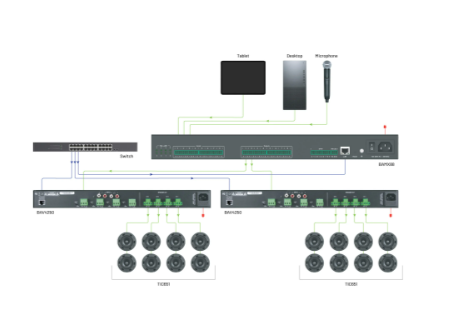

What does the BAMX88 Audio Matrix Processor do?  Acts as the backbone of a distributed audio system consisting of balanced/unbalanced inputs and outputs by managing, routing, processing, and optimizing audio across multiple zones, sources, and amplifiers within a single system.

What type of applications??  These systems are commonly used in environments such as:?

• Corporate conference rooms ?
• Restaurants and hospitality venues ?
• Schools and universities ?
• Houses of worship ?
• Fitness centers ?
• Retail stores ?
• Multi-room residential AV systems ?
• Broadcast and production spaces?
