VAN-EVSP4K14 | SLIM HDMI 1X4 4K SPLITTER 4K/60HZ HDR HDCP2.2

VAN-EVSP4K14
SLIM HDMI 1X4 4K SPLITTER 4K/60HZ HDR HDCP2.2

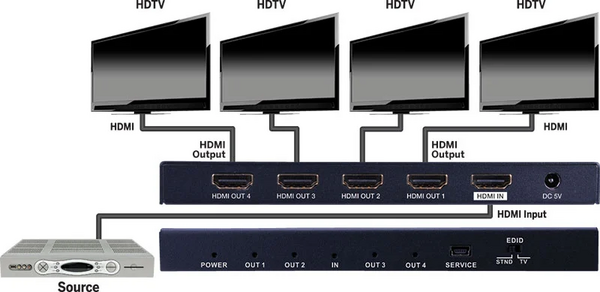

• Transmits audio and video from a single source to 4 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
• Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
• 3D frame sequential video format up to 1080p@60
• Supports high resolution VESA mode video format up to QSXGA 2560×2048@60Hz
• Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
• Dynamic and Manual EDID management modes to ensure compatibility during installation
• Supports LPCM 7.1CH- Dolby TrueHD- and DTS-HD Master Audio
• Supports Hot-plug
• High bandwidth: 18 Gbps
• Features status indicator for connection & input HDCP compliance
• Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
• Dimensions: 6.4” W x .6” H x 2.5” D

Package Contents:

EVSP4K14 4K HDMI 1×4 Splitter
12V 1A DC Power Supply
Product Manual
