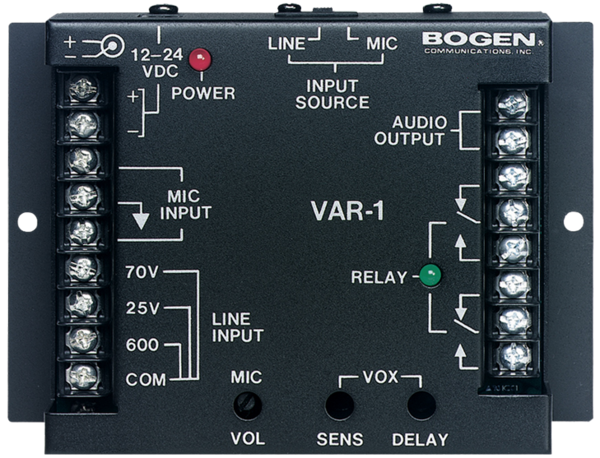

VAR1 | VOICE ACTIVATED RELAY, ***POWER SUPPLY SOLD SEPARATELY**

The VAR1 is a relay device that monitors audio activity over a wide range of input voltages and operates two sets of C-Form relay contacts in response to detected activity. The VAR1 can be used to detect voltages as low as signals directly from a microphone or as high as signals from 70V speaker systems. A low-level output of the detected audio, transformer-isolated from the input, is also made available for use with other equipment. The VAR1 can also be used as a balanced, low-impedance microphone pre-amp. The VAR1 is ideally suited to provide a set of contact closures for paging ports of lower cost telephone systems that do not have a set of AUX contacts to trigger paging equipment. An adjustable release delay (up to 25 seconds) keeps the paging system from dropping out in the middle of a page.

Features:

• 2 sets of C-Form (N.O. & N.C.) relay contacts respond to audio activity
• 4 levels of input signals: microphone, 600-ohm line, 25V, & 70V speaker systems
• Built-in balanced, low noise, high gain microphone pre-amp
• A transformer-isolated, 600-ohm small signal level output of detected audio available
• Trigger threshold adjustment
