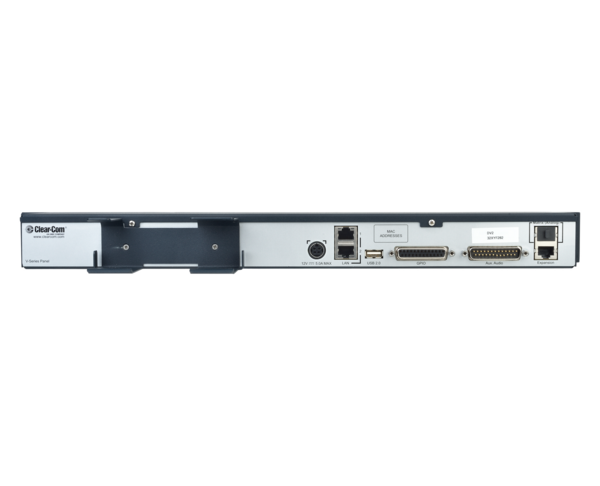

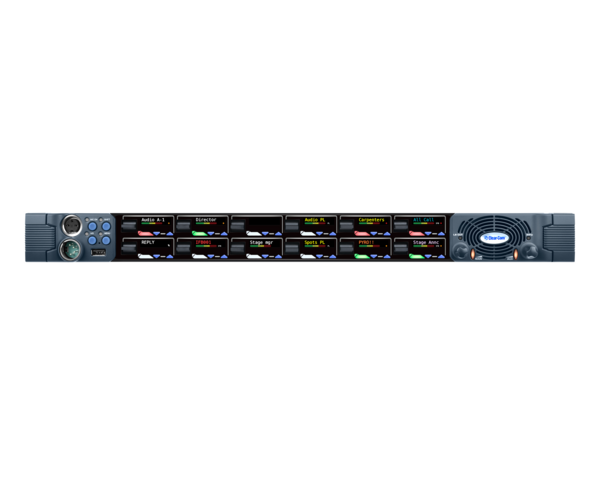

VI-PNLB-12L-X4 | V-SERIES IRISX PANEL, 12 KEY, LEVER, COLOR DISPLAY, 4 PIN XLR-M HS, 1RU
VI-PNLB-12L-X4
V-SERIES IRISX PANEL, 12 KEY, LEVER, COLOR DISPLAY, 4 PIN XLR-M HS, 1RU
Click image to enlarge
VI-PNLB-12L-X4
V-SERIES IRISX PANEL, 12 KEY, LEVER, COLOR DISPLAY, 4 PIN XLR-M HS, 1RU
- UM : EA
The VI-PNLB-12L-X4 is a 1RU rackmount lever panel featuring 12 keys and enhanced displays.
Features:
- 12 Keysets with Level control
- 10 Character High Brightness Color Display with volume bar and tally light
- Headset or hands-free support with speaker and mic
- External Inputs & Outputs
- Second Headset support
- Hot Mic Output
- Main Line Level Output
- Logic GPIO
- Local Networks - AES67 Capable
- Global Network - I.V. Port
- Redundant Networks support
- Direct Connection - Eclipse MVX
- Local Mixer with Adjustable Routing and Filters
- Hosted IP Direct Ports
| Eclipse features | Coming Soon |
|---|---|
| Headset Connector | 4-pin XLR-M |
| Gooseneck Mic Connector | 3-pin Tuchel |
| Microphone Input Type | Dynamic/Electret – Selectable |
| Microphone Voltage | 5V |
| Microphone Frequency Response | 150Hz to 20kHz ±3dB |
| Microphone Impedance (Electret) | 1700 Ω +/- 10% |
| Microphone Impedance (Dynamic) | 1000 Ω +/- 10% |
| Headset Earphone Impedance | >= 32Ω |
| Headset Output | 75mW into 50Ω @ <1% THD |
| System Voltage | 12V DC ± 5% |
| System Current (Max) | 5A |
| System Power (Max) | 60W |
×
×
