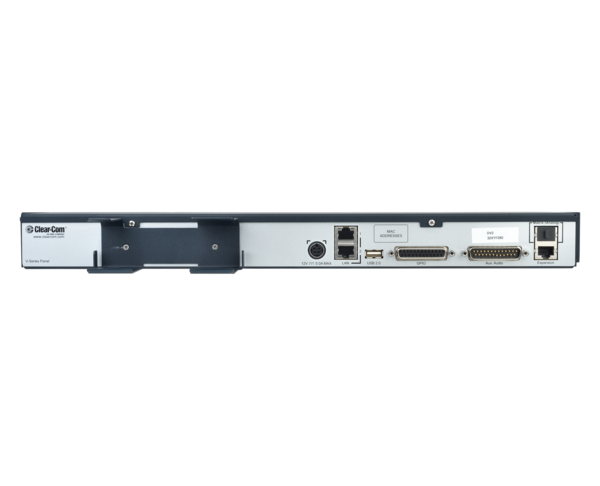

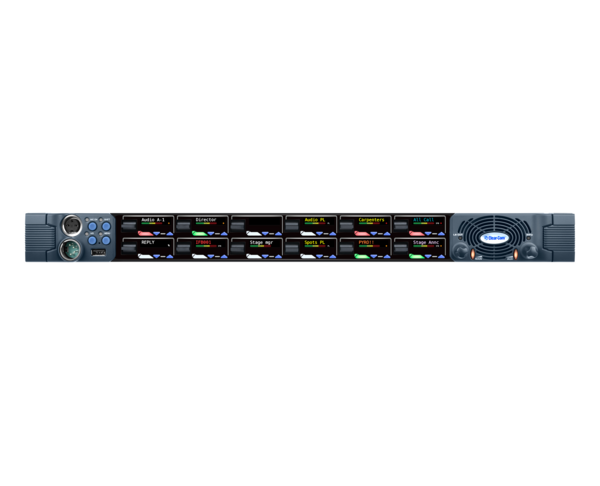

VI-PNLB-12L-X7 | V-SERIES IRISX PANEL, 12 KEY, LEVER, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU
VI-PNLB-12L-X7
V-SERIES IRISX PANEL, 12 KEY, LEVER, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU
Click image to enlarge
VI-PNLB-12L-X7
V-SERIES IRISX PANEL, 12 KEY, LEVER, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU
- UM : EA
The VI-PNLB-12L-X7 is a 1RU rackmount lever panel featuring 12 keys and enhanced displays.
Features:
- 12 Keysets with Level control
- 10 Character High Brightness Color Display with Volume Bar and Tally Light
- Headset or Hands-Free Support with Speaker and Mic
- External Inputs and Outputs
- Second Headset
- Hot Mic Output
- Main Line Level Output
- Logic GPIO
- AES67 Capable Local Networks
- Global Network I.V. Port
- Redundant Networks
- Direct Connection Eclipse MVX
- Channel, Group, IFB, Role, Interface, Sort Group, Dynam-EC Key Group Control
- Telephone with Separate Talk/Listen Key Assignment
| Headset Connector | 7-pin XLR-M |
|---|---|
| Gooseneck Mic Connector | 3-pin Tuchel |
| Microphone Input Type | Dynamic/Electret – Selectable |
| Microphone Voltage | 5V |
| Microphone Frequency Response | 150Hz to 20kHz ±3dB |
| Microphone Impedance (Electret) | 1700 Ω +/- 10% |
| Microphone Impedance (Dynamic) | 1000 Ω +/- 10% |
| Headset Earphone Impedance | >= 32Ω |
| Headset Output | 75mW into 50Ω @ <1% THD |
| System Voltage | 12V DC ± 5% |
| System Current (Max) | 5A |
| System Power (Max) | 60W |
×
×
