VI-PNLB-12R-X7 | V-SERIES IRISX PANEL, 12 KEY, ROTARY, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU

  • MAP: $4,635.00 / EA
  • List Price: $4,635.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
V-SERIES IRISX PANEL, 12 KEY, ROTARY, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU
V-SERIES IRISX PANEL, 12 KEY, ROTARY, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU
Click image to enlarge
V-SERIES IRISX PANEL, 12 KEY, ROTARY, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU
V-SERIES IRISX PANEL, 12 KEY, ROTARY, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU

VI-PNLB-12R-X7
V-SERIES IRISX PANEL, 12 KEY, ROTARY, COLOR DISPLAY, 7 PIN XLR-M HS, 1RU

  • UM : EA

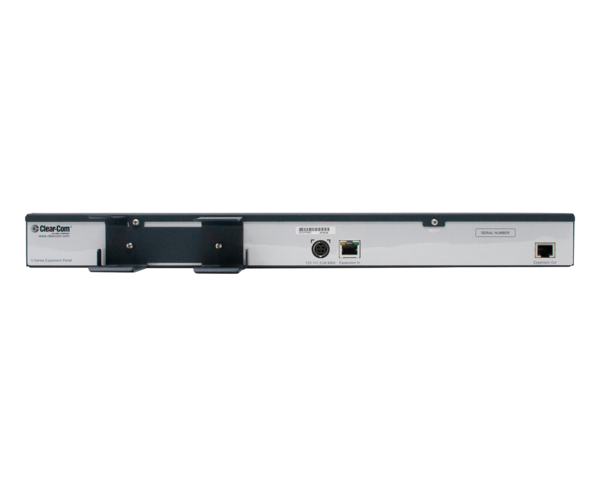

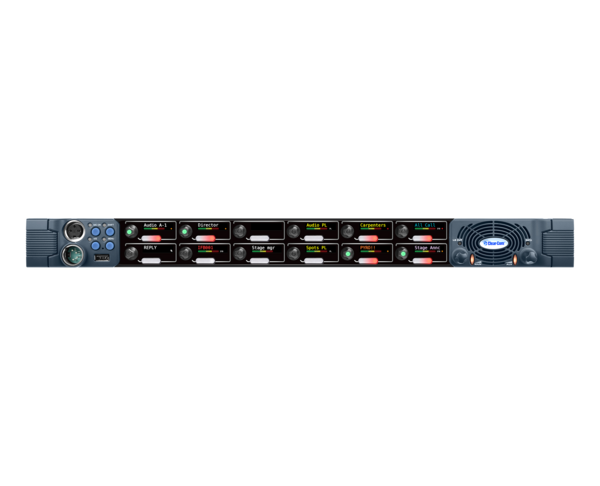

The VI-PNLB-12R-X7 is a 1RU rackmount control panel featuring 12 rotary keys.

Features:

  • 12 Keysets with Level control
  • 10 Character High Brightness Color Display with volume bar and tally light
  • Headset or hands-free support with speaker and mic
  • External Inputs & Outputs
  • Second Headset
  • Hot Mic Output
  • Main Line Level Output
  • Logic GPIO
  • Local Networks - AES67 Capable Networks
  • Global Network - I.V. Port
  • Redundant Networks
  • Direct Connection - Eclipse MVX
  • Local Mixer with Adjustable Routing
  • Expansion Panels
Headset Connectors7-pin XLR-M
Gooseneck Mic Connectors3-pin Tuchel
Microphone Input TypeDynamic/Electret – Selectable
Microphone Voltage5V
Microphone Frequency Response150Hz to 20kHz ±3dB
Microphone Impedance (Electret)1700 Ω +/- 10%
Microphone Impedance (Dynamic)1000 Ω +/- 10%
Headset Earphone Impedance>= 32Ω
Headset Output75mW into 50Ω @ <1% THD
