VI-PNLB-24P-X4 | V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 4 PIN XLR-M HS, 2RU

  • MAP: $5,930.00 / EA
  • List Price: $5,930.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 4 PIN XLR-M HS, 2RU
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 4 PIN XLR-M HS, 2RU
Click image to enlarge
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 4 PIN XLR-M HS, 2RU
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 4 PIN XLR-M HS, 2RU

VI-PNLB-24P-X4
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 4 PIN XLR-M HS, 2RU

  • UM : EA

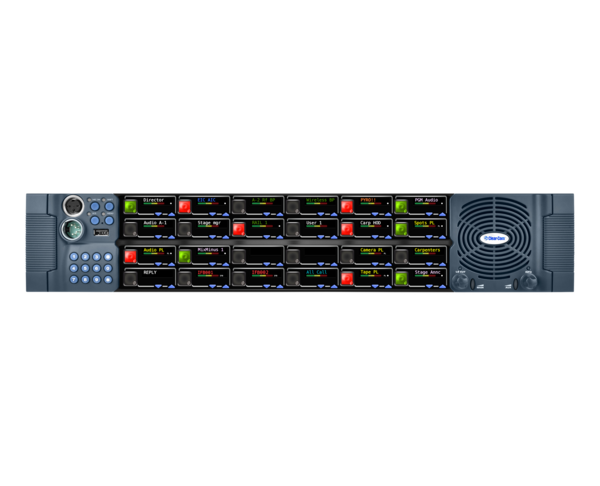

The VI-PNLB-24P-X4 is a 2RU rackmount panel equipped with 24 pushbutton keys.

Features:

  • 24 keysets with level control
  • 10 character high brightness color display with volume bar and tally light
  • Headset or hands-free support with speaker and mic
  • External inputs and outputs
  • Second headset
  • Hot mic output
  • Main line level output
  • Logic gpio
  • Local aes67 capable networks
  • Global i.v. port network
  • Redundant networks
  • Direct connection eclipse mvx
  • Channel, group, ifb, role, interface, sort group management
  • Local mixer with adjustable routing
Headset Connector4-pin XLR-M
Gooseneck Mic Connector3-pin Tuchel
Microphone Input TypeDynamic/Electret – Selectable
Microphone Voltage5V
Microphone Frequency Response150Hz to 20kHz ±3dB
Microphone Impedance (Electret)1700 Ω +/- 10%
Microphone Impedance (Dynamic)1000 Ω +/- 10%
Headset Earphone Impedance>= 32Ω
Headset Output75mW into 50Ω @ <1% THD
