VI-PNLB-24P-X5 | V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU
VI-PNLB-24P-X5
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU
Click image to enlarge
VI-PNLB-24P-X5
V-SERIES IRISX PANEL, 24 KEY, PUSHBUTTON, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU
- UM : EA

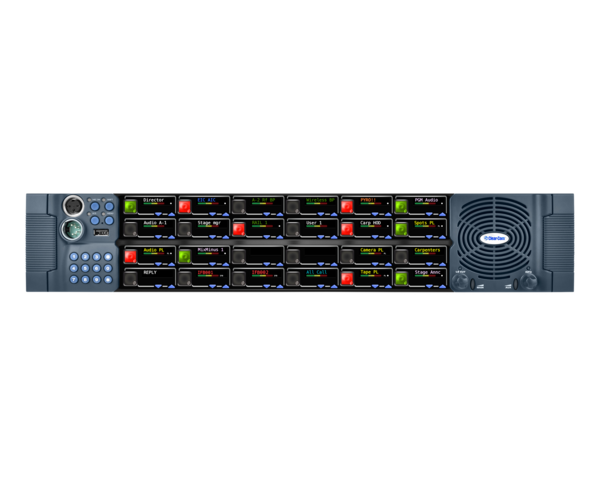

The VI-PNLB-24P-X5 is a 2RU rackmount panel equipped with 24 pushbutton keys.
Features:
- 24 keysets with level control
- 10 character high brightness color display with volume bar and tally light
- Headset or hands-free support with speaker and mic
- External inputs & outputs
- Second headset
- Hot mic output
- Main line level output
- Logic gpio
- Local networks - aes67 capable networks
- Global network - i.v. port
- Redundant networks
- Direct connection - eclipse mvx
- Channel, group, ifb, role, interface, sort group, control, telephone
- Local mixer with adjustable routing
| Headset Connector | 5-pin XLR-F |
|---|---|
| Gooseneck Mic Connector | 3-pin Tuchel |
| Microphone Input Type | Dynamic/Electret – Selectable |
| Microphone Voltage | 5V |
| Microphone Frequency Response | 150Hz to 20kHz ±3dB |
| Microphone Impedance (Electret) | 1700 Ω +/- 10% |
| Microphone Impedance (Dynamic) | 1000 Ω +/- 10% |
| Headset Earphone Impedance | >= 32Ω |
| Headset Output | 75mW into 50Ω @ <1% THD |
×
×
