VI-PNLB-24R-X5 | V-SERIES IRISX PANEL, 24 KEY, ROTARY, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU

  • MAP: $6,295.00 / EA
  • List Price: $6,295.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
V-SERIES IRISX PANEL, 24 KEY, ROTARY, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU
V-SERIES IRISX PANEL, 24 KEY, ROTARY, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU
Click image to enlarge
V-SERIES IRISX PANEL, 24 KEY, ROTARY, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU
V-SERIES IRISX PANEL, 24 KEY, ROTARY, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU

VI-PNLB-24R-X5
V-SERIES IRISX PANEL, 24 KEY, ROTARY, COLOR DISPLAY, 5 PIN XLR-F HS, 2RU

  • UM : EA

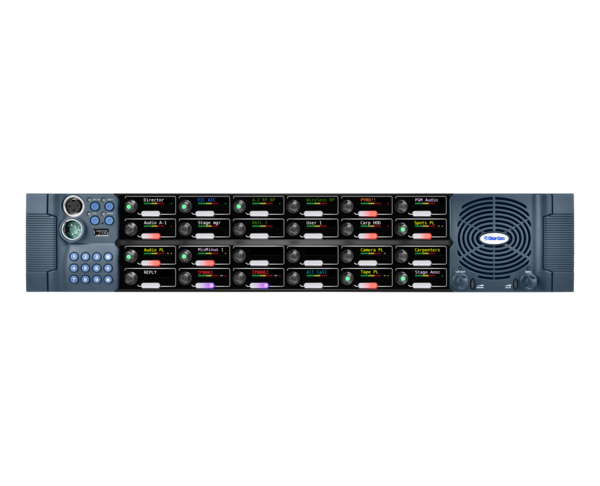

The VI-PNLB-24R-X5 is a 2RU rackmount control panel featuring 24 rotary keys.

Features:

  • 24 Keysets with Level Control
  • 10 Character High Brightness Color Display with Volume Bar and Tally Light
  • Headset or Hands-Free Support with Speaker and Mic
  • External Inputs and Outputs
  • Second Headset
  • Hot Mic Output
  • Main Line Level Output
  • Logic GPIO
  • AES67 Capable Local Networks
  • I.V. Port Global Network
  • Direct Connection - Eclipse MVX
  • Channel, Group, IFB, Role, Interface Controls
  • Local Mixer with Adjustable Routing and Filters
  • Expansion Panels
Headset Connectors5-pin XLR-F
Gooseneck Mic Connector3-pin Tuchel
Microphone Input TypeDynamic/Electret – Selectable
Microphone Voltage5V
Microphone Frequency Response150Hz to 20kHz ±3dB
Microphone Impedance (Electret)1700 Ω +/- 10%
Microphone Impedance (Dynamic)1000 Ω +/- 10%
Headset Earphone Impedance>= 32Ω
Headset Output75mW into 50Ω @ <1% THD
