VLA-C125S-ACC | FOR ADDING TERMINAL CUP TO FRONT OF VLA-C125S SUBWOOFER TO ALLOW EASY AND NEAT CARDIOID SUBWOOFER
VLA-C125S-ACC
FOR ADDING TERMINAL CUP TO FRONT OF VLA-C125S SUBWOOFER TO ALLOW EASY AND NEAT CARDIOID SUBWOOFER
VLA-C125S-ACC
FOR ADDING TERMINAL CUP TO FRONT OF VLA-C125S SUBWOOFER TO ALLOW EASY AND NEAT CARDIOID SUBWOOFER
- UM : EA

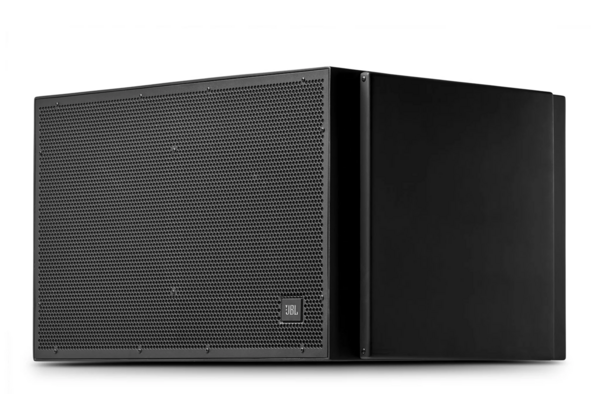

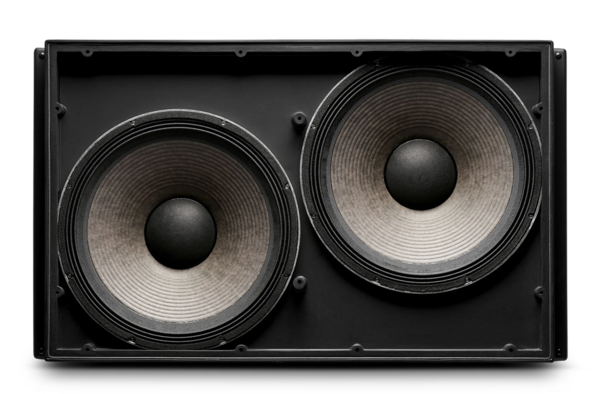

The VLA-C125S-ACC is a dual 15-inch subwoofer system incorporating JBL's Differential Drive transducers. The enclosure is constructed from multi-layer reinforced fiberglass with steel end panels to enhance structural integrity. The front baffle consists of 14-gauge perforated steel that is zinc-plated and powder-coated, backed by acoustically transparent black baffle cloth, a hydrophobic mesh underlayer, and a waterproof rail system for environmental protection.
The system includes an integrated rigging mechanism that allows for selectable inter-box angles during array assembly. Accessories available for this model include a rigging frame, pull-back bar, and a cardioid kit, facilitating varied installation configurations.
Features:
- Compact line array module
- Advanced technology component transducers
- Low weight and high output
- Outdoor IP55 rated enclosure
- Comprehensive rigging points
- Fiberglass box construction
- Weatherized components
- Dual 15” transducers
| Frequency Range | 52 Hz – 210 Hz |
|---|---|
| Frequency Response | 62 Hz – 123 Hz |
| System Power Rating | 1600 W Continuous Pink Noise (6400 W peak), 2 hrs; 800 W Continuous Pink Noise (3200 W peak), 100 hrs |
| Maximum InputVage | 80 V RMS (2 hrs), 160 V peak |
| Maximum SPL (1m) | 127 dB Continuous Average (2 hrs), 133 dB Peak |
| Sensitivity | 98 dB (52 Hz – 210 Hz, 2.83V) |
| Impedance | 4Ω, 3.0Ω min @ 195 Hz |
| Amplifiers | Crown DCi Family with DSP onboard |
| Environmental | IP-55 rating per IEC529 (dust and water jets protection) |
| Terminals | CE-compliant covered barrier strip terminals, accept up to 5.2 sq mm wire or 9 mm spade lugs, with touch-proof covers |
