VLA301HI
HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.

  • UM : EA

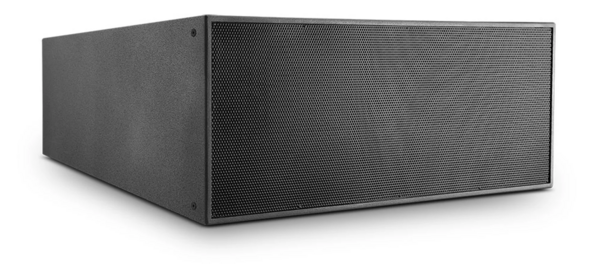

The Variable Line Array Series (VLA Series) is a three-way full-range loudspeaker system featuring two 15-inch low-frequency drivers, four 8-inch mid-frequency drivers, and six 1.5-inch exit high-frequency drivers. The system provides a 30° horizontal dispersion pattern for directed sound coverage.

Features:

  • Line array module optimized for permanent install
  • High output with 6 HF, 4 MF, and 2 LF drivers
  • Advanced transducers for low weight and high output
  • Comprehensive rigging points for line array configuration
  • Rugged DuraFlex exterior finish

    • Frequency Range 39 Hz - 19.2 kHz
    System Power Ratings (AES) LF: 1000W Continuous, MF: 400W Continuous, HF: 160W Continuous
    Maximum SPL (1m) 151.1 dB
    Nominal Impedance 4 ohms
    Sensitivity (2.83V @1m) LF: 99/96 dB, MF: 105 dB, HF: 115/112 dB
    Drivers LF: 2 x JBL 2265H 15in, MF: 4 x JBL 2169H 8in, HF: 6 x JBL 2432H 1.5in compression driver
    Enclosure Exterior grade Baltic birch plywood with DuraFlex finish
    Suspension Attachments 16 points, M10 threaded hardware
    Finish Black DuraFlex standard
    Environmental Mil-Std 810, IPx3 rating
