VLA301I | HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.

  • MAP: $13,990.49 / EA
  • List Price: $13,990.49 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.
HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.
Click image to enlarge
HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.
HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.

VLA301I
HIGH OUTPUT THREE-WAY FULL-RANGE HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM.

  • UM : EA

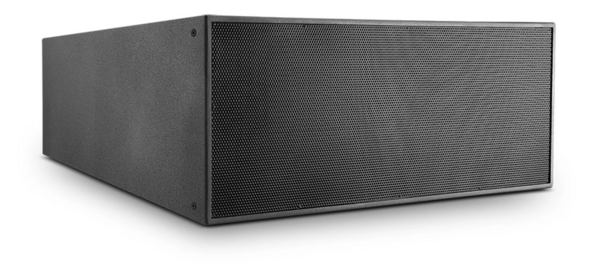

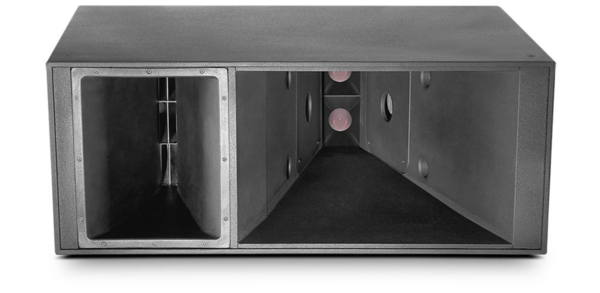

The Variable Line Array Series (VLA Series) is a three-way full-range loudspeaker featuring two 15-inch low-frequency drivers, two 8-inch mid-frequency drivers, and three 1.5-inch high-frequency exits. It provides a 30-degree horizontal dispersion pattern designed for sound reinforcement applications.

Features:

  • Line array module for permanent installations
  • 3 HF drivers, 2 MF drivers, 2 LF drivers
  • Advanced transducers for low weight and high output
  • Comprehensive rigging points for line array configuration

    • Frequency Range 39 - 19.2 kHz
    System Power Ratings (AES) LF 1000W, MF 400W, HF 160W Continuous (IEC/100 hour)
    Maximum SPL (1m) 147.5 dB (Preset: Flat)
    LF Driver 2 x JBL 2265H, 15in, dual 3in voice coil, Neodymium Differential Drive
    Nominal Impedance 4 ohms
    Sensitivity (2.83V @ 1m) LF 99dB/96dB, MF 109dB/105dB, HF 109dB/112dB
    Mid-Frequency Driver 2 x JBL 2169H, 8in, dual 3in voice coil, Neodymium differential Drive
    High-Frequency Driver 3 x 2432H, 1.5in exit compression driver, 3in voice coil, Neodymium Magnet
    Enclosure 18mm and 16mm Baltic birch plywood, DuraFlex finish or optional Fiberglass
    Environmental Mil-Std 810; IPx3 per IEC529; WRC/WRX options for higher ratings
