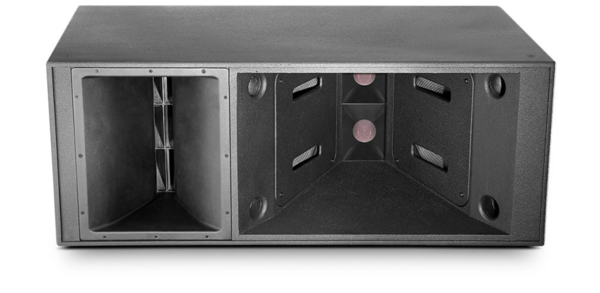

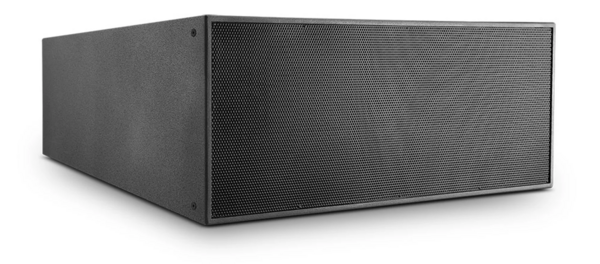

VLA601I | "3-WAY HORN LOADED LINE ARRAY SYSTEM "

The Variable Line Array (VLA) Series is a three-way full-range loudspeaker system featuring two 15-inch low-frequency drivers, two 8-inch mid-frequency drivers, and three 1.5-inch exit high-frequency drivers. It provides a 60-degree horizontal dispersion pattern designed to deliver sound reinforcement over extended throw distances. The system is engineered to maintain controlled coverage and consistent frequency response across its designated range.

Features:

• Line array module for permanent installations
• 3 HF drivers, 2 MF drivers, 2 LF drivers
• Advanced transducers for low weight and high output
• Rigging points for line array configuration
• Rugged weather-resistant exterior finish



Frequency Range	41 - 20kHz (-10dB)
System Power Ratings	LF 1000W, MF 400W, HF 160W Continuous (IEC /100 hour)
Maximum SPL (1m)	147.2dB (Preset: Flat)
Nominal Impedance	4 ohms
Sensitivity (2.83V @ 1m)	LF 99dB/96dB, MF 107dB/104dB, HF 108dB/111dB
LF Driver	2 x JBL 2265H, 15in, dual 3in voice coil, Neodymium Differential Drive
Mid-Frequency Driver	2 x JBL 2169H, 8in, dual 3in voice coil, Neodymium Differential Drive
High-Frequency Driver	3 x JBL 2432H, 1.5in exit compression driver, 3in voice coil, Neodymium Magnet
Enclosure	Exterior grade Baltic birch plywood, DuraFlex finish or optional Fiberglass
Environmental	Mil-Std 810; IPx3 per IEC529; use WRC or WRX for higher ratings
