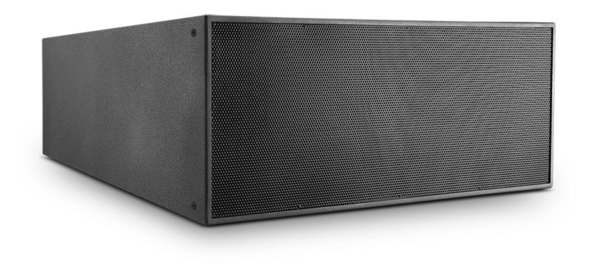

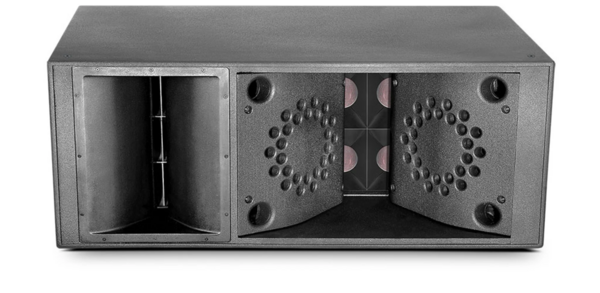

VLA901HI | "HIGH OUTPUT THREE-WAY FULL RANGE LOUDSPEAKER W/ 2X15"" LF "

The Variable Line Array Series loudspeaker is a three-way full-range system featuring two 15-inch low-frequency drivers, four 8-inch mid-frequency drivers, and six 1.5-inch exit high-frequency drivers. It provides 90° horizontal dispersion and is designed for high-output sound reinforcement over extended throw distances.

Features:

• Line array module optimized for permanent install applications
• High output with 6 HF drivers, 4 MF drivers, and 2 LF drivers
• Advanced transducers for low weight and high output
• Comprehensive rigging points for line array configuration
• Rugged DuraFlex exterior finish and weatherized components



Frequency Range	41 - 20 kHz
System Power Ratings (AES)	LF 1000W, MF 550W, HF 300W continuous
Maximum SPL (1m)	149.6 dB
Nominal Impedance	4 ohms
Sensitivity (2.83V @ 1m)	LF 98 dB/96 dB, MF 102 dB, HF 110 dB/107 dB
LF Driver	2 x JBL 2265H, 15 in, dual 3 in voice coil, Neodymium Differential Drive
Mid-Frequency Driver	4 x JBL 2169H, 8 in, dual 3 in voice coil, Neodymium Differential Drive
High-Frequency Driver	6 x JBL 2432H, 1.5 in exit compression driver, 3 in voice coil, Neodymium Magnet
Horizontal Coverage	90° nominal (400 Hz – 16 kHz)
Environmental	Mil-Std 810; IPx3 per IEC529; WRC and WRX versions for higher weather resistance
