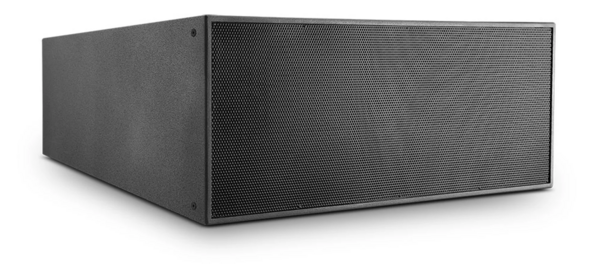

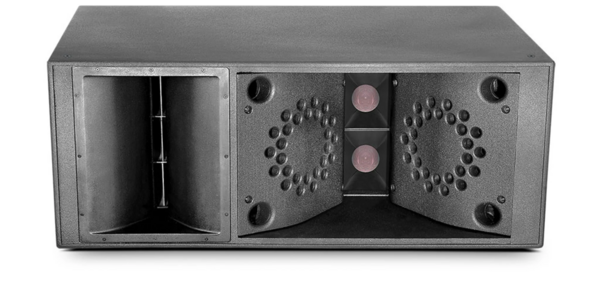

VLA901I | THREE-WAY FULL RANGE LOUDSPEAKER WITH 2 X 15" LF

The Three-Way Full Range Loudspeaker features a low-frequency section with two 15-inch drivers, a mid-frequency section with two 8-inch drivers, and a high-frequency section with three 1.5-inch exit drivers. It provides a horizontal dispersion angle of 90 degrees.

Features:

• Line array module for permanent installation
• 3 HF drivers, 2 MF drivers, 2 LF drivers
• Advanced lightweight, high-output transducers
• Rigging points for line array configuration
• Rugged DuraFlex exterior



Frequency Range	41 - 20 kHz
Horizontal Coverage	90° (400 Hz – 16 kHz)
System Power Ratings (AES)	LF: 1000W, MF: 400W, HF: 160W
Maximum SPL (1m)	146 dB (Preset: Flat)
Nominal Impedance	4 ohms
Sensitivity (2.83V @ 1m)	LF: 99dB/96dB, MF: 106dB/103dB, HF: 106dB/109dB
LF Driver	2 x JBL 2265H, 15 in, dual 3 in voice coil, Neodymium Differential Drive
Mid-Frequency Driver	2 x JBL 2169H, 8 in, dual 3 in voice coil, Neodymium Differential Drive
High-Frequency Driver	3 x JBL 2432H, 1.5 in exit compression driver, 3 in voice coil, Neodymium Magnet
Enclosure	18mm and 16mm exterior grade Baltic birch plywood, DuraFlex finish or optional fiberglass
