VMA1120 | VMA 1120: (5) INPUT CHANNEL X (1) 120W OUTPUT CHANNEL MIXER/AMPLIFIER, 100V, 70V OR 4OHM / 8OHM

  • MAP: $779.00 / EA
  • List Price: $779.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
VMA 1120: (5) INPUT CHANNEL X (1) 120W OUTPUT CHANNEL MIXER/AMPLIFIER, 100V, 70V OR 4OHM / 8OHM
VMA 1120: (5) INPUT CHANNEL X (1) 120W OUTPUT CHANNEL MIXER/AMPLIFIER, 100V, 70V OR 4OHM / 8OHM
Click image to enlarge
VMA 1120: (5) INPUT CHANNEL X (1) 120W OUTPUT CHANNEL MIXER/AMPLIFIER, 100V, 70V OR 4OHM / 8OHM
VMA 1120: (5) INPUT CHANNEL X (1) 120W OUTPUT CHANNEL MIXER/AMPLIFIER, 100V, 70V OR 4OHM / 8OHM

VMA1120
VMA 1120: (5) INPUT CHANNEL X (1) 120W OUTPUT CHANNEL MIXER/AMPLIFIER, 100V, 70V OR 4OHM / 8OHM

  • UM : EA
  • Estimated Weight: 27.0

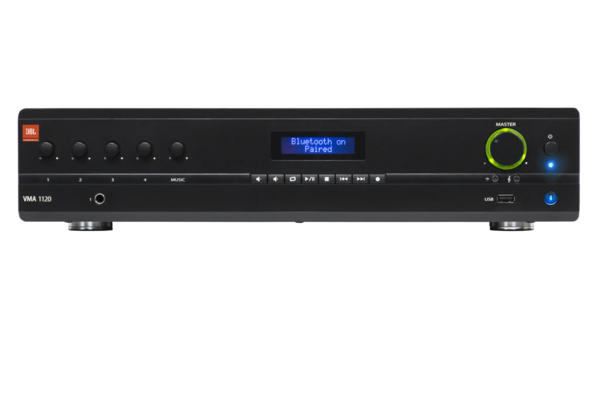

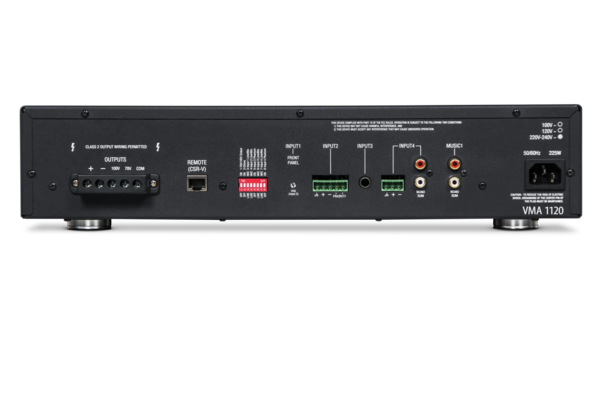

The JBL VMA1120 is a mixer/amplifier from the VMA Series, supporting low impedance outputs of 4Ω and 8Ω, as well as high impedance outputs at 70V and 100V. It includes features aimed at flexible integration for commercial audio installations.

Max Output Power per Channel VMA1120: 120W, 1kHz, ≤ 0.5% THD, into 4 Ω or 8 Ω
Insertion Loss 1dB maximum (70V & 100V outputs)
Number of Inputs 5
Number of Outputs 1
Tone Controls Bass ±14dB @ 50Hz; Treble ±14dB @ 10kHz
Input Sensitivity Mic Input: 5.5mVRMS, Line Input: 1.3VRMS, RCA Input (stereo in): 130mVRMS
Frequency Response 4/8 Ω Output: 20Hz - 20kHz, ±2dB; 70V/100V Outputs: 80Hz - 15kHz, ±3dB
Total Harmonic Distortion (THD) Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio >76dB (Ref. Rated Power, A-weighted)
Input Impedance Mic: 400 Ω, Line: 20 kΩ (balanced), RCA: 50 kΩ
Phantom Power 27VDC
Crosstalk -70 dB (1kHz, volume mid position)
