VMA160 | 5 INPUT CHANNEL X (1) 60W OUTPUT CHANNEL MIXER/AMPLIFIER, 70V, 100V, 4OHM, 8OHM
VMA160
5 INPUT CHANNEL X (1) 60W OUTPUT CHANNEL MIXER/AMPLIFIER, 70V, 100V, 4OHM, 8OHM
VMA160
5 INPUT CHANNEL X (1) 60W OUTPUT CHANNEL MIXER/AMPLIFIER, 70V, 100V, 4OHM, 8OHM
- UM : EA

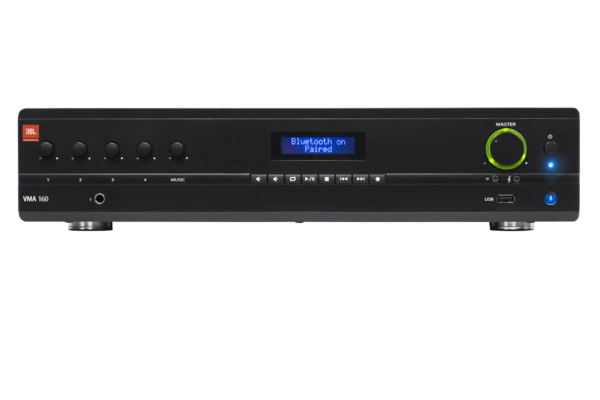

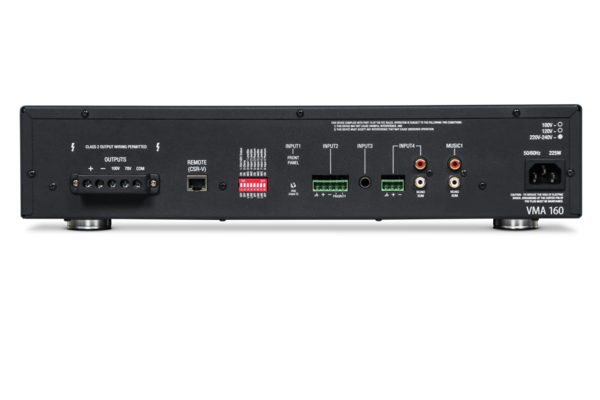

The JBL VMA Series consists of mixer-amplifiers that support both low impedance outputs of 4 ohms and 8 ohms, as well as high impedance outputs of 70 volts and 100 volts. These units provide integration flexibility for various audio system configurations. The design includes features intended to accommodate commercial audio installations.
| Max Output Power per Channel | VMA160 60W, VMA1120 120W, VMA1240 240W |
|---|---|
| Insertion Loss (70V & 100V outputs) | 1dB max |
| Number of Inputs | 5 |
| Number of Outputs | 1 |
| Tone Controls | Bass +/-14dB @ 50Hz; Treble +/-14dB @ 10kHz |
| Input Sensitivity | Mic 5.5mVRMS, Line 1.3VRMS, RCA 130mVRMS |
| Frequency Response | 4/8 ohm output 20Hz-20kHz +/-2dB; 70V/100V outputs 80Hz-15kHz +/-3dB |
| Total Harmonic Distortion (THD) | <0.5% 20Hz-20kHz |
| Signal to Noise Ratio | >76dB |
| Phantom Power | 27VDC |
| Product Specifications | |
|---|---|
| Brand | JBL Commercial |
