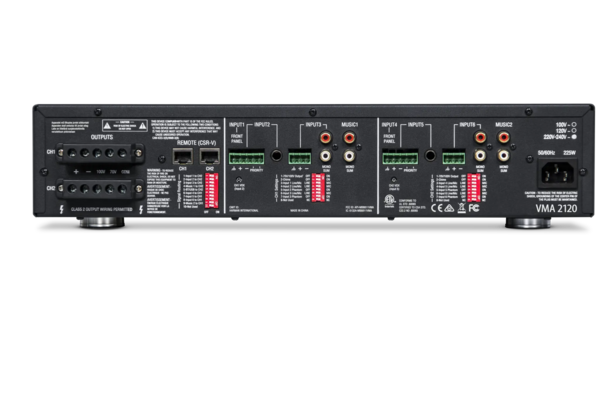

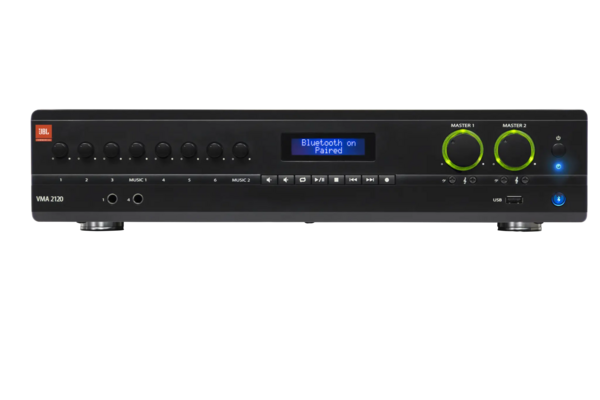

VMA2120 | VMA 2120: (8) INPUT CHANNEL X (2) 120W OUTPUT CHANNEL MIXER/AMPLIFIER
VMA2120
VMA 2120: (8) INPUT CHANNEL X (2) 120W OUTPUT CHANNEL MIXER/AMPLIFIER
VMA2120
VMA 2120: (8) INPUT CHANNEL X (2) 120W OUTPUT CHANNEL MIXER/AMPLIFIER
- UM : EA
The JBL VMA Series consists of mixer/amplifiers that support low-impedance outputs of 4 ohms and 8 ohms, as well as high-impedance outputs of 70V and 100V. These units are configured for integration into commercial audio systems and provide multiple output options to accommodate various speaker configurations.
| Max Output Power per Channel | VMA260: 60W, VMA2120: 120W into 4 ohm or 8 ohm, 1kHz, =< 0.5% THD |
|---|---|
| Insertion Loss | 1dB maximum (70V & 100V outputs) |
| Number of Inputs | 8 |
| Number of Outputs | 2 |
| Tone Controls | Bass ±14dB @ 50Hz, Treble ±14dB @ 10kHz |
| Input Sensitivity | Mic: 5.5mVRMS, Line: 1.3VRMS, RCA stereo: 130mVRMS |
| Frequency Response | 4/8 ohm Output: 20Hz - 20kHz ±2dB; 70V/100V Outputs: 80Hz - 15kHz ±3dB |
| Total Harmonic Distortion (THD) | <0.5%, 20Hz - 20kHz |
| Signal to Noise Ratio | >76dB (A-weighted) |
| Input Impedance | Mic: 400 ohm, Line: 20 kohm balanced, RCA: 50 kohm |
| Phantom Power | 27VDC |
| Crosstalk | -70 dB (at 1kHz) |
