VRX918SP | POWERED 18" FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF, CROWN DPC-2 AMPLIFIER MODULE

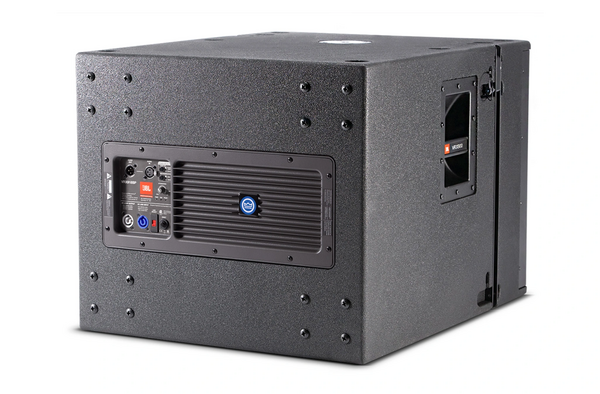

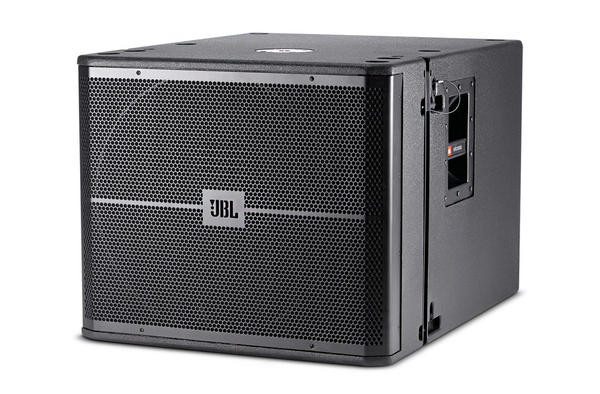

The VRX918SP is an 18-inch powered subwoofer featuring a 2268FF neodymium magnet driver with a patented Differential Drive design. It is housed in a front-loaded, vented enclosure designed for suspension mounting. The subwoofer is engineered for integration in arrays with the VRX932LAP line array speaker and VRX-AF array frame, as well as in subwoofer-only arrays composed entirely of VRX918SP units.

• Built-in JBL Drivepack DPC-2 amplifier module with 1500 Watts peak power
• DSP input module for system optimization, EQ, and crossover
• 18-inch 2268FF dual voice coil neodymium magnet woofer
• Integral rigging hardware for easy enclosure connection
• 20 mm threaded pole socket for secure mounting
• Large port area for reduced distortion

Power Rating	1500 W Peak
Frequency Range	31 Hz – 220 Hz
Maximum Peak Output	126 dB SPL at 1m
Bandpass Nominal Impedance	LF: 2 x 2 ohms
LF Driver	1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive woofer with neodymium magnet
Inputs	XLR with loop through
User Controls	Input volume control (0-16 dB), Selectable 80 Hz or 120 Hz Low Pass, 80 Hz High-Pass enable/disable for XLR loopthrough
System Processing	DSP based, resident in Input Module
System Management	DSP based limiters for mechanical and thermal protection
AC Power Operating Range	90-132 VAC or 216-264 VAC, 50/60 Hz
