VRX928LA-WH | 8" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2168H-1 DIFFERENTIAL DRIVE 400W LF; 2 X 2414H 1 INCH

  • MAP: $1,799.00 / EA
  • List Price: $2,660.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
8" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2168H-1 DIFFERENTIAL DRIVE 400W LF; 2 X 2414H 1 INCH
8" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2168H-1 DIFFERENTIAL DRIVE 400W LF; 2 X 2414H 1 INCH
Click image to enlarge
8" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2168H-1 DIFFERENTIAL DRIVE 400W LF; 2 X 2414H 1 INCH
8" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2168H-1 DIFFERENTIAL DRIVE 400W LF; 2 X 2414H 1 INCH

VRX928LA-WH
8" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2168H-1 DIFFERENTIAL DRIVE 400W LF; 2 X 2414H 1 INCH

  • UM : EA
  • Estimated Weight: 28.0

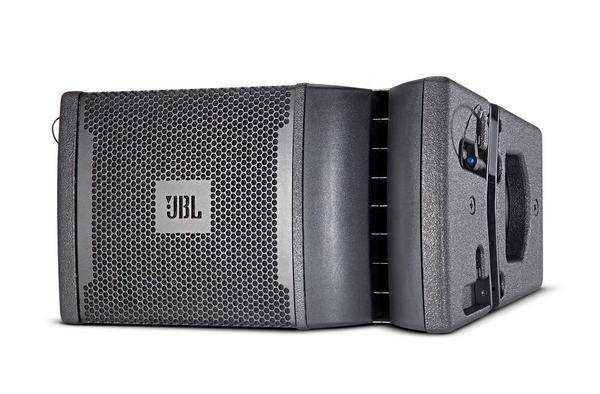

The VRX928LA is a two-way line array loudspeaker system featuring an 8-inch driver. It has a compact design and a weight of 28 pounds (13 kilograms). The system is engineered for configuration in arrays of up to six units.

  • Constant Curvature Array with two compression drivers
  • Amplitude Shading switches for high frequency output control
  • Suspension and rigging
  • Dual Angle Pole Socket for flexible aiming (excluding WH version)
  • Differential Drive Woofer
    • Power Rating 400 W / 800 W / 1600 W
    Frequency Range (-10 dB) 70 Hz - 20 kHz
    Coverage Pattern 100 x 15 nominal
    Frequency Response (±3 dB) 85 Hz - 19 kHz
    Crossover Modes Bi-amp / passive
    Crossover Frequency 2.0 kHz

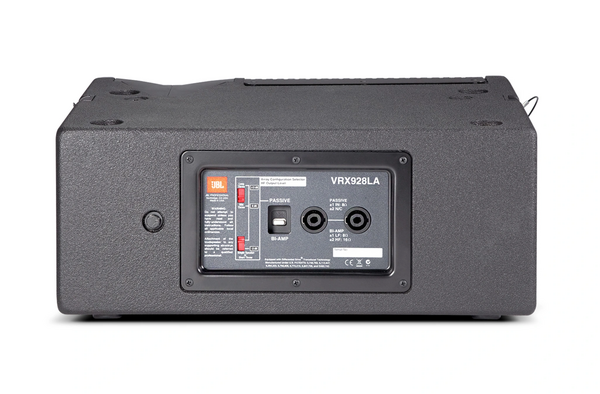

    Inputs Neutrik Speakon NL-4 (x2)
    Outputs 1 x XLR
    Enclosure Duraflex coated plywood
    System Type Constant Curvature 8" Two-Way Line Array System
    Maximum SPL (1m) 122 dB SPL peak (passive mode), LF: 122 dB (bi-amp mode), HF: 128 dB (bi-amp mode)
    Nominal Impedance Passive = 8 ohm, Bi-amp LF = 8 ohm, Bi-amp HF = 16 ohm
    LF Driver 1 x 200 mm (8 in) Differential Drive woofer
    HF Driver 2 x 25 mm (1.0 in) neodymium compression driver
    Suspension / Mounting Dual 36 mm pole socket included; suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts
