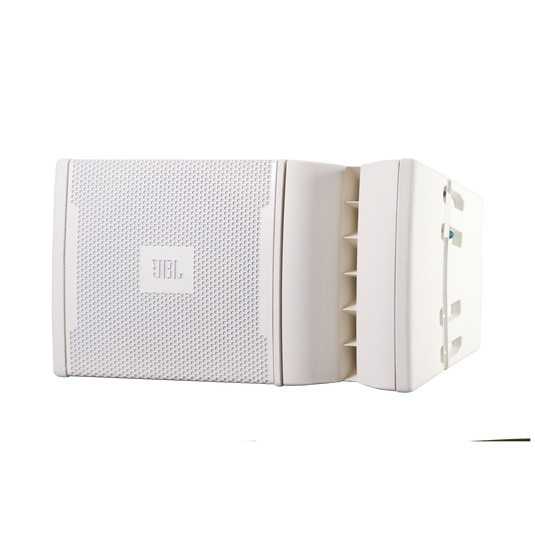

VRX932LA-1WH | 12" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2262H DIFFERENTIAL DRIVE LF; 3 X 2408J ANNULAR RING DIAPHRAGM

  • MAP: $2,735.00 / EA
  • List Price: $4,160.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

VRX932LA-1WH
12" 2-WAY LINE-ARRAY SYSTEM WITH 1 X 2262H DIFFERENTIAL DRIVE LF; 3 X 2408J ANNULAR RING DIAPHRAGM

  • UM : EA
  • Estimated Weight: 53.0

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.

Features:

  • JBL’s exclusive neodymium magnet Differential Drive woofer for high-power capacity and light-weight.
  • VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
  • Array Configuration Selector permits “array shading” in passive mode.
Power Rating 800 W / 1600 W / 3200 W
Frequency Range (-10dB) 57 Hz - 20 kHz
Dimensions (H x W x D) 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
Frequency Response (±3 dB) 75 Hz - 20 Hz
Coverage Pattern 100 x 15 nominal
Crossover Modes Bi-amp / passive, externally switchable
Crossover Frequency 132 dB SPL peak 1.2 kHz
Maximum SPL (1m) 130 dB SPL peak (passive mode)LF: 130 dBHF: 139 dB
Sensitivity Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance Passive = 8 ohmBi-amp LF = 8 ohmBi-amp HF = 8 ohm
Active Tunings Tunings available at www.jblpro.com
Enclosure 18 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX932LA-AF line array frame kit
Finish Black DuraFlex finish
Grille Power coated, black, 16-guage perforated steel with with acoustically transparent foam
Inputs Neutrik Speakon NL-4 (x2)
Net Weight (each) 21 kg (46 lb)
Optional Accessories VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
Outputs 1 x XLR
System Type Constant Curvature 12" Two-Way Line Array System
