VT1512-IP | VERTICAL STRIP STYLE POWER DISTRIBUTION UNIT (PDU)
VT1512-IP
VERTICAL STRIP STYLE POWER DISTRIBUTION UNIT (PDU)
VT1512-IP
VERTICAL STRIP STYLE POWER DISTRIBUTION UNIT (PDU)
- UM : EA
The VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control systems.

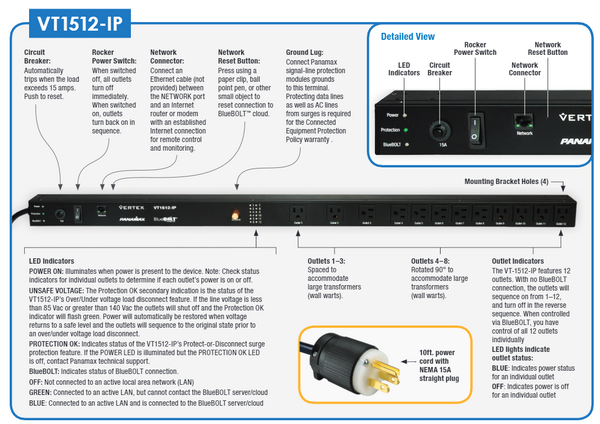

Features
Protect-or-Disconnect surge protection
Standard EMI/RFI Filtration
Over/Under voltage load disconnect
Power Sequencing
IP Monitor & Control – BlueBOLT™ enabled for IP control and monitoring
12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°
Ground lug to attach Panamax signal-line protection modules
Sleek design ideal for vertical mounting to an equipment rack with included brackets
10 foot power cord with removable plug to customize length
15A Capacity with circuit breaker
3 year limited product warranty
$5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.
BlueBOLT Provides Web Based Remote Power Management to Monitor and Control Your System – From Anywhere, 24/7.
|
AC Power |
120Vac, 50/60Hz |
|
Total Outlets |
12 |
|
Total Current Capacity |
15A (1800W) |
|
Voltage Protection Rating (UL 1449 4th Edition, 3,000A) |
L-N 500V, L-G 500V, N-G 500V |
|
Protection Modes |
L-N, L-G, N-G |
|
Initial Clamping Level |
200 V Peak, 141 RMS |
|
Energy Dissipation |
668 Joules |
|
Peak Impulse Current |
12,000 |
|
Protect-or-Disconnect |
Yes |
|
Thermal Fusing |
Yes |
|
Cord Length |
Captive 10ft. cord with removable NEMA 5-15P for length customization |
|
Dimensions |
37” L x 1.75” W x 1.75” H |
