VTX A12 AF | VTX A12 ARRAY FRAME

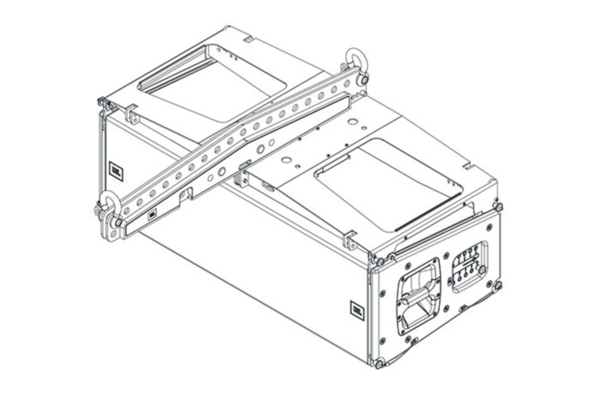

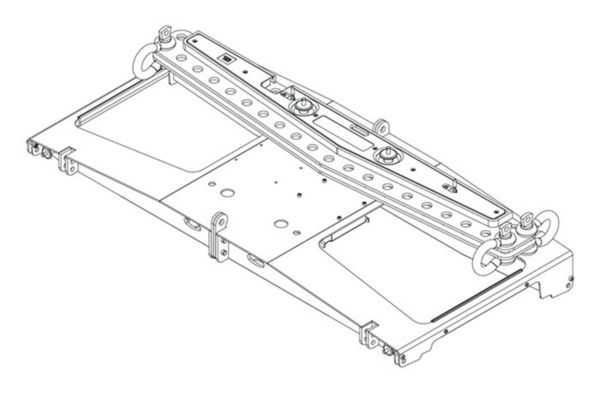

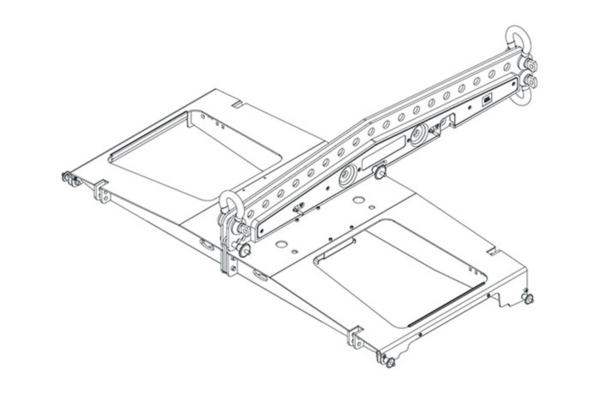

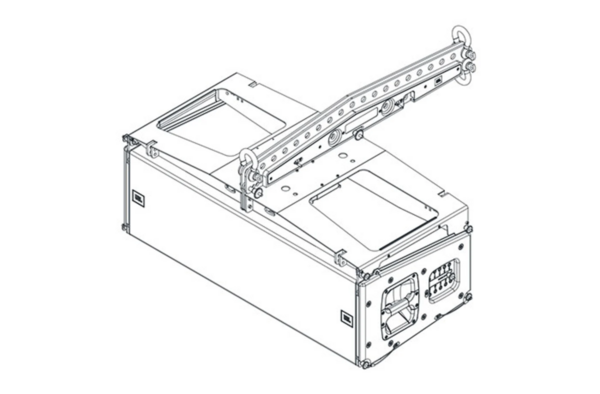

The VTX A12 AF is a lightweight Array Frame used for suspending VTX A12 series enclosures. The frame was designed to operate in either single-point, front-to-back or side-by-side suspension modes using the VTX A12 AF EB Extension Bar. The extension bar is compatible with 5/8-inch shackles and can be stored above the main frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the Extension Bar to the main frame, allowing for precise control of shackle positioning for single-point applications.

• Support for up to (24) VTX A12 enclosures
• Single, front-to-back or side-by-side pick point options
• 0.5-degree pick point resolution
• Built-in storage position for Extension Bar
• Compatible shackle size: 5/8 in
