VTX A12 BP | BASE PLATE FOR GROUND STACKING VTX A12 ON TOP OF VTX B28

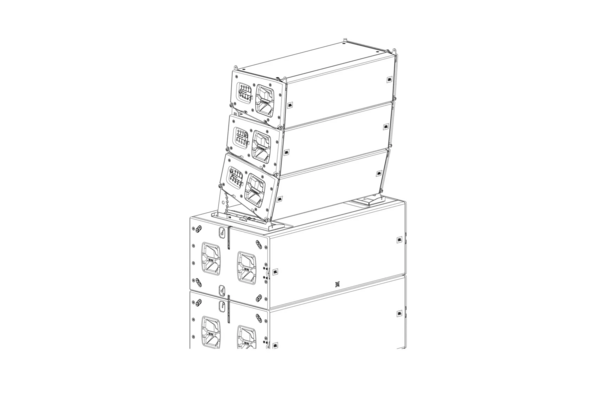

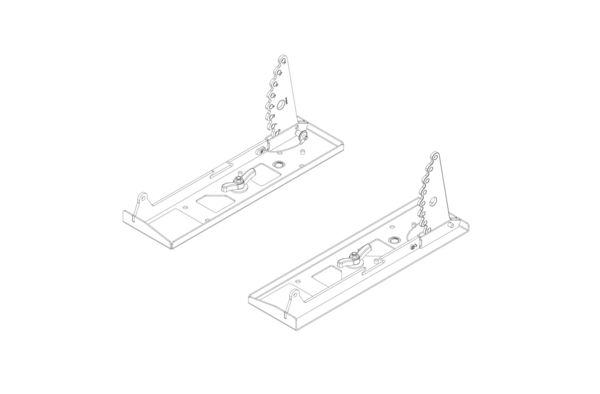

The VTX A12 Base Plate accessory is a universal adapter frame that enables VTX A12 arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts. Using the included M20 knob-screws, the VTX A12 BP attaches directly to the bottom of an A12 array, and then to top-mounted M20 plates on the VTX B28 subwoofer. The rear angle selection bar can be set for angles between -15 degrees and +5 degrees. When not used with B28 subwoofers, the A12 BP’s M10 through-holes can be used to permanently attach an A12 array to other support structures.

Features:

• Enables ground stacking VTX A12 arrays
• Universal M20 threaded pole mount
• Attaches directly to VTX B28 subwoofer enclosure
• Array angles selectable between -15 degrees and +5 degrees
• Two-part lightweight design
