VTX A6 MF | MINI FRAME FOR A6 AND B15

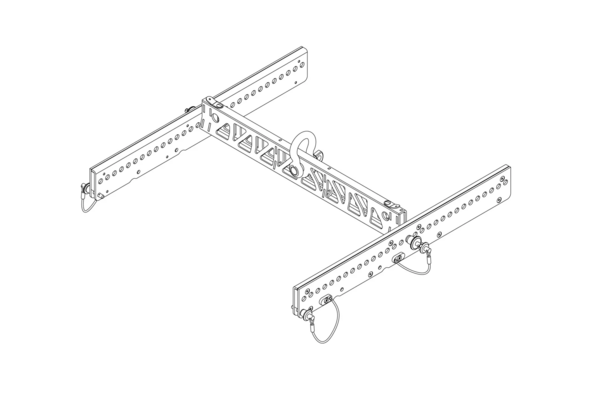

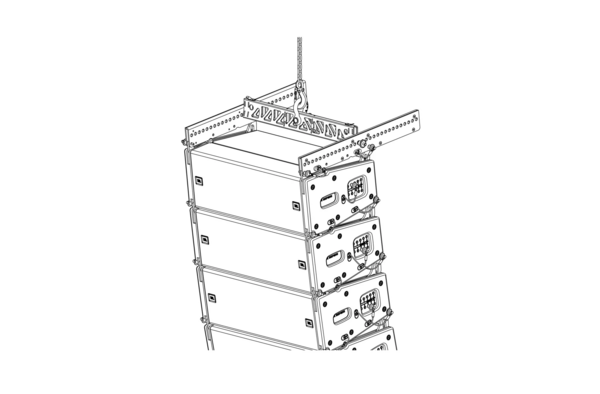

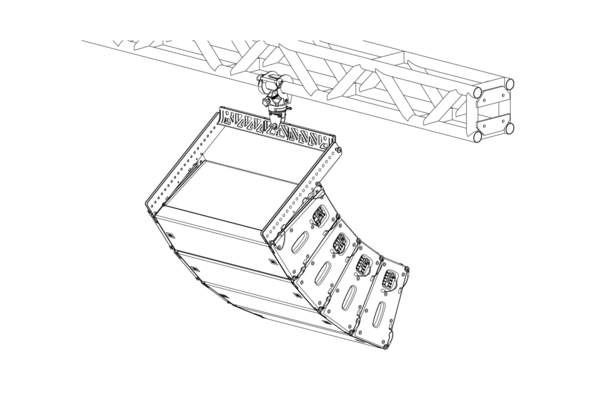

The VTX A6 MF Mini Frame is a lightweight, compact, and inexpensive array frame used for suspending smaller VTX A6 and VTX B15 arrays. The mini frame was designed to work primarily with single-point or side-by-side suspension methods. For single-point applications, the mini frame can be used in conjunction with the VTX RC500 Rotating Clamp, allowing smaller arrays to be suspended from standard size trusses or pipes. The side-by-side suspension points are especially useful when suspending arrays from telescopic boom lifts. The three-piece design is comprised of two side arms and one spreader bar. The side arms connect to the cabinets, and the spreader bar can be pinned to one of 30 positions on the side arms, providing excellent tilt resolution. The three pieces can be collapsed and pinned together for storage.

Features:

• Compact and lightweight design
• Compatible with VTX A6 and VTX B15
• Single-point and side-by-side pick-point options
• 0.5° pick-point resolution
• Three-part collapsible design
