VTX A8
COMPACT DUAL 8" LINE ARRAY

  • UM : EA

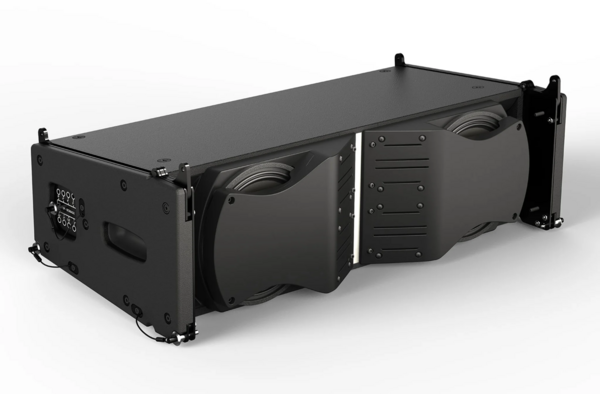

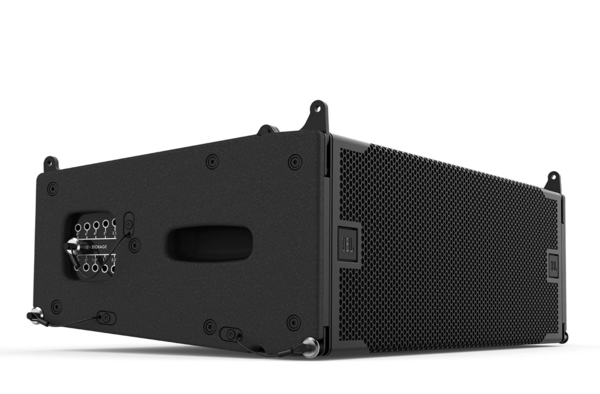

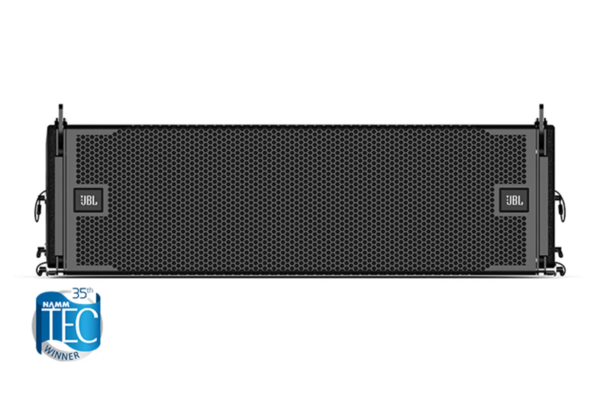

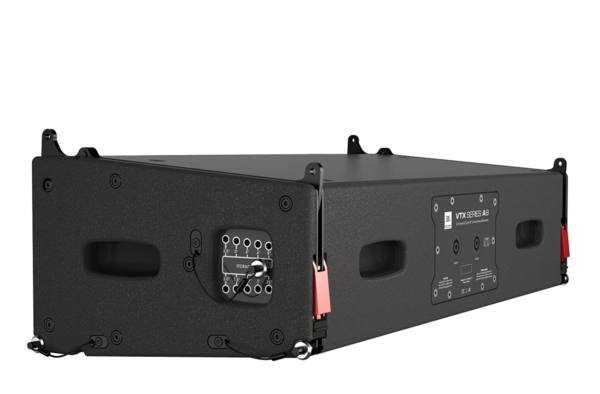

The VTX A8 is a compact line array loudspeaker designed for small to mid-size rental and installed sound reinforcement applications. It features two 8-inch woofers, four 3.5-inch midrange drivers, and two 2-inch high-frequency drivers housed in a low-profile enclosure. The loudspeaker provides a horizontal dispersion of 110 degrees. The cabinet includes proprietary double-flared low-frequency ports to extend the frequency response down to 49 Hz. The VTX A8 utilizes JBL's patented rigging mechanism and suspension system for mounting flexibility.

Features:

  • 3-way bi-amp design
  • JBL Differential Drive woofers
  • Slip Stream ports for bass response down to 49 Hz
  • Common HF compression driver for sonic consistency
  • Mid-frequency Radiation Boundary Integrator (RBI) design
  • Auto-locking rigging mechanism
  • Built-in MF/HF passive network
  • Full-face enclosed baffle with IP55 weatherization
  • Comprehensive mounting accessories
  • Seamless integration with JBL system control software
  • Compact, lightweight design
Frequency Range 50Hz - 19kHz
Coverage Pattern 110 degrees (300Hz - 18kHz)
Max SPL 139 dB
System Processing Crown Audio I-Tech HD
Nominal Impedance LF = 8ohms, MHF = 8ohms
LF Driver (2) JBL 258J 8-inch woofers
MF Driver (4) JBL 2163H 3-inch mid-frequency drivers
HF Driver (2) JBL 2423K 2-inch annular diaphragm compression drivers
Enclosure Finnish birch plywood, black DuraFlex finish, four recessed handholds
Inter-enclosure Angle 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10 degrees
