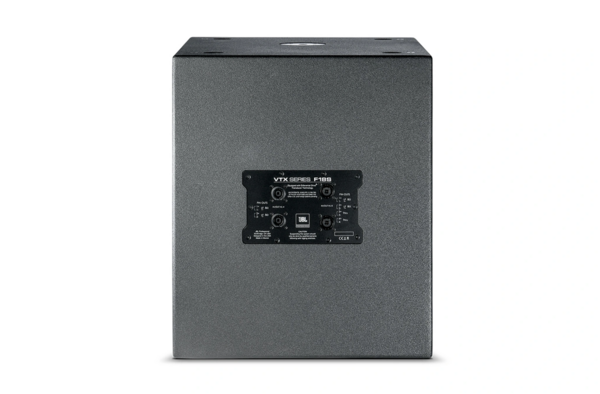

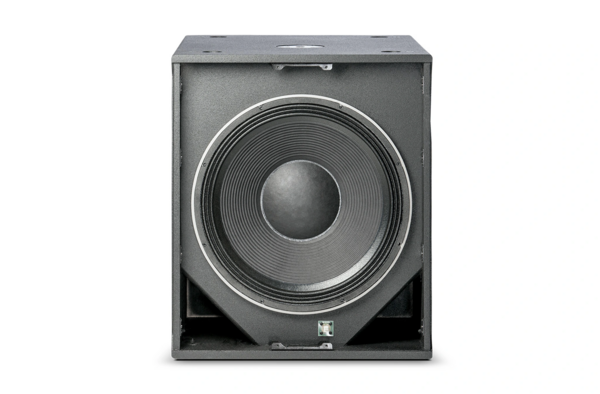

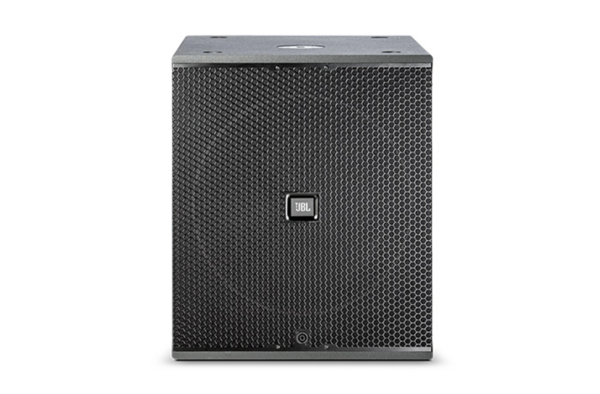

VTX-F18S | VTX F SERIES F18S COMPACT SUBWOOFER ENCLOSURE FEATURING ULTRA LONG THROW, PATENTED DIFFERENTIAL

The VTX F series includes an 18-inch compact single subwoofer designed for audio applications requiring versatile deployment options. This subwoofer can function as a standalone front-of-house (FOH) system component, be combined with companion units such as the VTX F18S for satellite and subwoofer configurations, or serve as an on-stage floor monitor and fill speaker. The design supports multiple audio system setups by providing a consistent output suitable for various professional sound production needs.

• 2269H Differential Drive 18"
• High Power Handling (2000 W Continuous, 8000 W Peak AES 2 hr)
• Linear Excursion Capability (3.5" peak-to-peak)
• Reverse-Cardioid Arrayable (front NL4)
• Reinforced M20 Extension Rod Receptacle
• 16x M10 Mount Points
• Convenient Handle Locations (4x)
• Attachment Plates Included for F18S with F12 or F15

System Type	High Power Single 18” Differential Drive Subwoofer
Components	1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Neodymium Differential Drive, Direct Cooled Transducer
Frequency Range (-10dB)	24 Hz - 100 Hz
Frequency Response (±3 dB)	32.5 Hz - 80 Hz
Sensitivity	97 dB half space
Nominal Impedance	8 ohms
Transducer Power Rating (AES 2 hour)	2000W continuous, 8000W peak
Maximum SPL (1m)	133 dB (Preset: VTX F18S 80)
Enclosure	18 mm, 11-ply Baltic birch plywood; black DuraFlex finish
