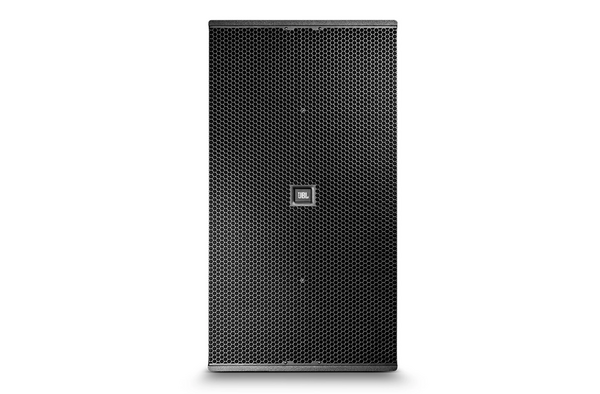

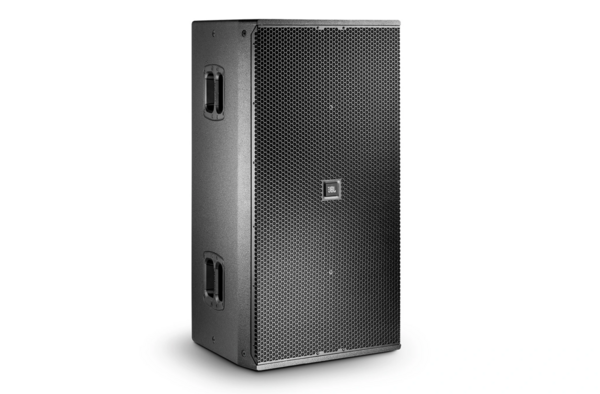

VTX-F35/64
CSX: F35, HIGH OUTPUT THREE-WAY FULL RANGE SYSTEM. DESIGNED TO ADDRESS A WIDE RANGE OF APPLICATIONS,

• UM : EA

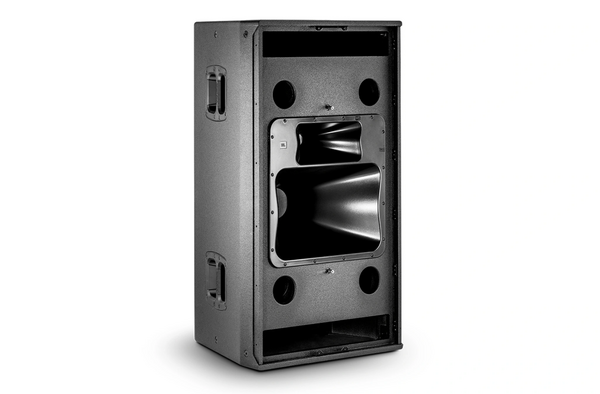

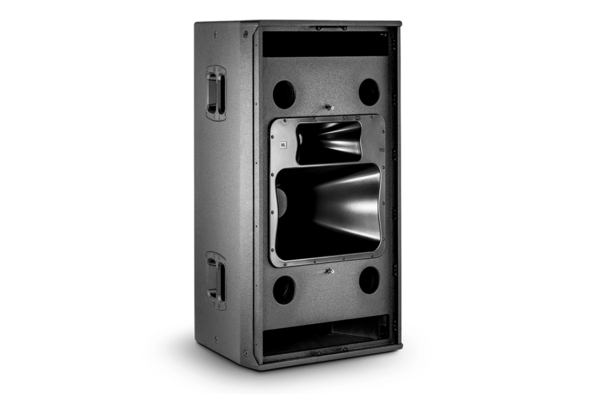

• 3-way enclosure with D2 Dual Diaphragm Dual Voice Coil high frequency driver
• Differential Drive, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled mid-frequency and low-frequency transducers
• Multiple M10 attachment points for suspension
• V5 Processing compatible with Crown Audio I-Tech HD amplifiers

Frequency Range	39 Hz - 18 kHz
Coverage Pattern	60° Horizontal x 40° Vertical or 90° Horizontal x 50° Vertical
System Input Power Rating	LF: 2 x 800 W Continuous (IEC), MF: 270 W Continuous (IEC), HF: 100 W Continuous (IEC)
Maximum Peak Output	143 dB
System Processing	Crown Audio I-Tech HD Series, Crown Audio I-Tech 4x3500HD
Nominal Impedance	LF = 2 x 8 ohms, MF = 8 ohms, HF = 8 ohms
LF Driver	2 x 2265H, 254 mm diameter, dual 76 mm voice coil, NDD, Direct Cooled
MF Driver	1 x 2169H, 203 mm diameter, 76 mm dual voice coil, Neodymium Differential Drive, Direct Cooled
HF Driver	1 x D2430H, D2 dual diaphragm, dual 76 mm voice coil

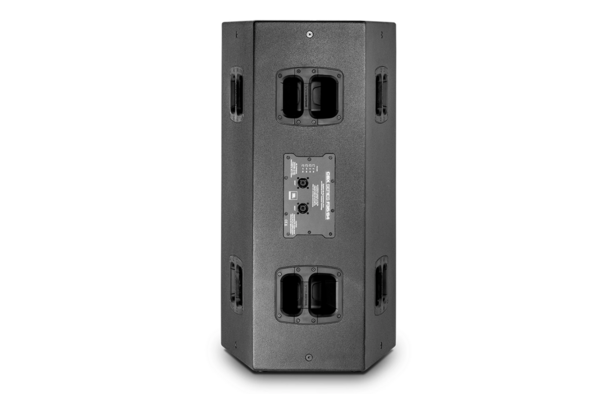

Input Connectors	Neutrik Speakon NL-8 (2x), LF1: 1±, LF2: 2±, MF: 3±, HF: 4±
