VTX-M20
VTX M SERIES IS JBL’S LATEST IN PREMIUM STAGE MONITORING PRODUCTS DESIGNED FOR THE MOST DEMANDING,
Click image to enlarge
VTX-M20
VTX M SERIES IS JBL’S LATEST IN PREMIUM STAGE MONITORING PRODUCTS DESIGNED FOR THE MOST DEMANDING,
- UM : EA

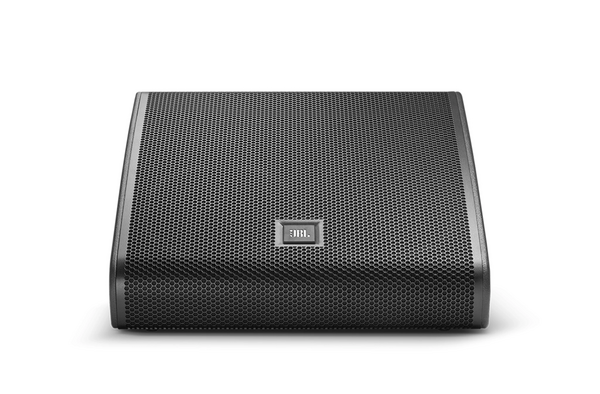

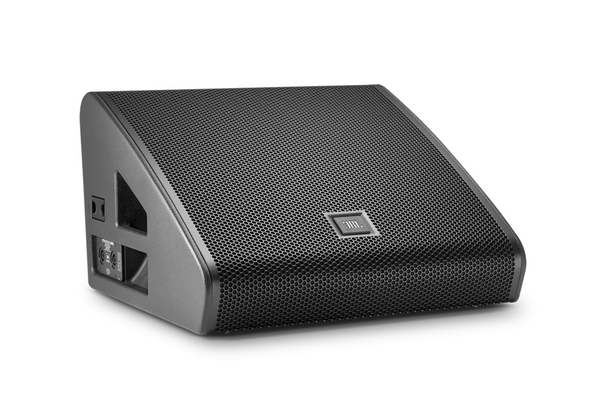

- Low profile, compact design suitable for touring and broadcast applications

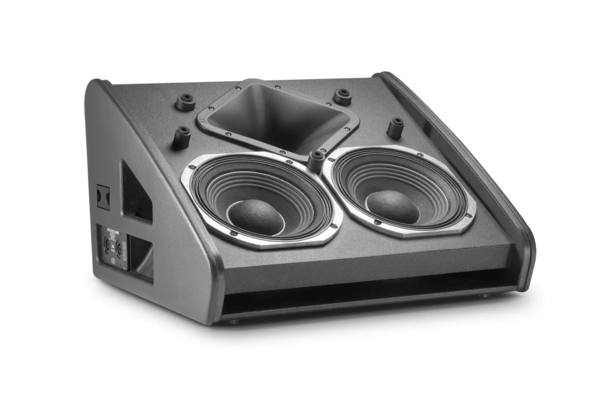

- JBL Differential Drive cone transducers and D2 dual diaphragm dual voice coil compression driver

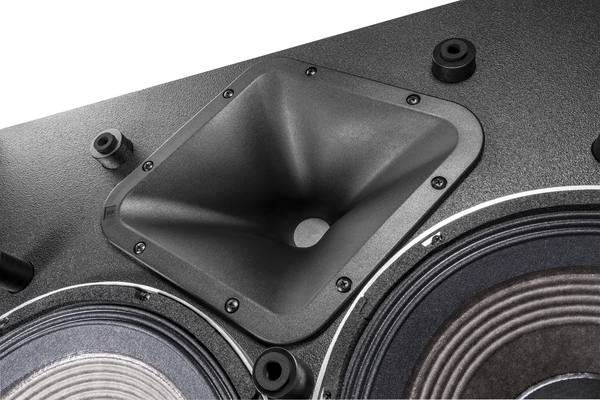

- 60x60 High Frequency Waveguide with JBL Image Control Waveguide Technology

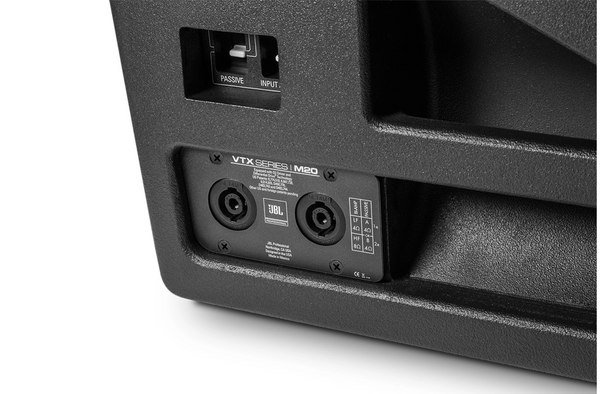

- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes
| Frequency Range | 55 Hz - 19.5 kHz |
|---|---|
| Coverage Pattern | Horizontal 60°, Vertical 60° |
| System Input Power Rating Passive | 1250 W Continuous (IEC / 100 hour) |
| System Input Power Rating Powered LF | 1250 W Continuous (IEC / 100 hour) |
| System Input Power Rating Powered HF | 100 W Continuous (IEC / 100 hour) |
| Maximum SPL (1m) | 136 dB |
| System Latency | 3.33 ms |
| System Processing | Crown Audio I-Tech HD Series, Crown Audio I-Tech 4x3500HD |
| Nominal Impedance Passive | 4 ohms, Active LF: 4 ohms, Active HF: 8 ohms |
| LF Driver | 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil |
| HF Driver | 1 x D2430H, D2 dual diaphragm, dual 76 mm (3 in) diameter voice coil |
×
×
×
×
×
