VTX-M22
VTX M SERIES IS JBL’S LATEST IN PREMIUM STAGE MONITORING PRODUCTS DESIGNED FOR THE MOST DEMANDING,
Click image to enlarge
VTX-M22
VTX M SERIES IS JBL’S LATEST IN PREMIUM STAGE MONITORING PRODUCTS DESIGNED FOR THE MOST DEMANDING,
- UM : EA
- Low profile, compact design for touring and broadcast

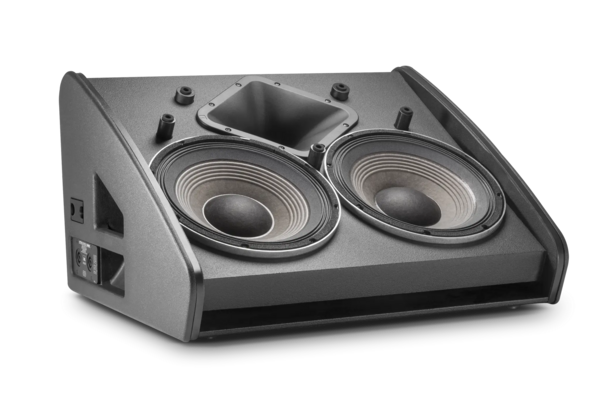

- JBL Differential Drive cone transducers and D2 dual diaphragm dual voice coil compression driver

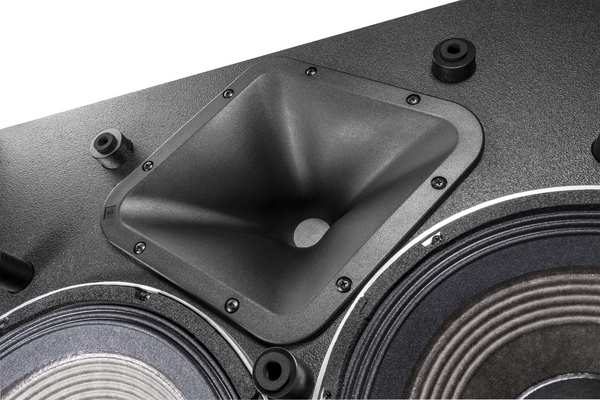

- 60x60 High Frequency Waveguide with Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) operation modes
| Frequency Range | 45 Hz - 19.5 kHz |
|---|---|
| Coverage Pattern | Horizontal 60°, Vertical 60° |
| System Input Power Rating | Passive 1500 W Continuous (IEC 100 hour), Powered LF 1500 W Continuous (IEC 100 hour), HF 100 W Continuous (IEC 100 hour) |
| Maximum SPL (1m) | 138 dB |
| System Latency | 3.33 ms |
| System Amplification | Crown Audio I-Tech HD |
| Nominal Impedance | Passive 4 ohms, Active LF 4 ohms, Active HF 8 ohms |
| LF Driver | 2 x 2262H, 12 in diameter, dual 3 in diameter voice coil, NDD, Direct Cooled |
| HF Driver | 1 x D2430H, D2 dual diaphragm, dual 3 in diameter voice coil |

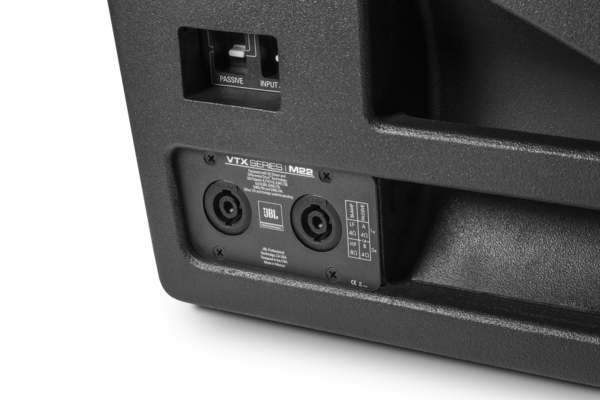

| Input Connectors | Passive Neutrik Speakon NL-4 (4x), Selectable Pins 1 ± or Pins 2 ±; Powered Neutrik Speakon NL-4 (4x), Pins 1 ± (LF) | Pins 2 ± (HF) |
×
×
×
×
×
