VTX-V20 | VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER
Click image to enlarge
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER

VTX-V20
VTX V SERIES V20 MIDSIZE 3-WAY LINE ARRAY ELEMENT FEATURING PATENTED D2 DUAL DIAPHRAGM DUAL DRIVER

  • UM : EA

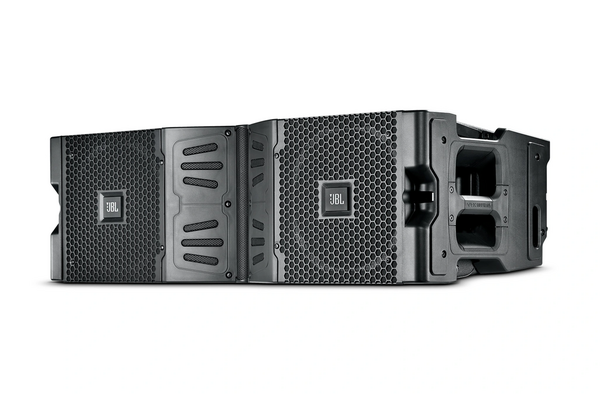

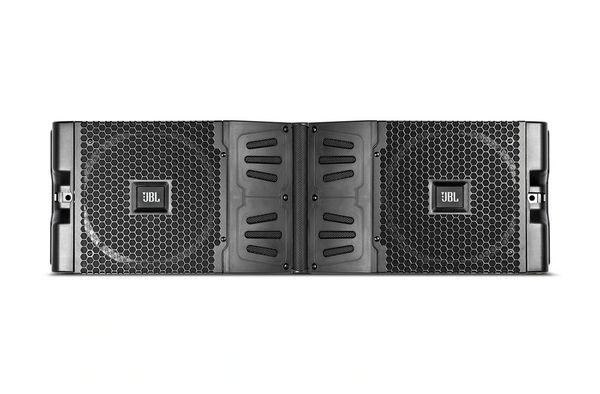

VTX-V20 is a compact, high power density 3-way loudspeaker system. It incorporates a suspension system designed for efficient transport, rapid setup, and precise configuration. The system provides stable 105-degree horizontal coverage and effective line source array coupling in the vertical plane. The components are engineered to deliver linear sound response at high output levels relative to the unit's size.

Features:

  • Differential Drive Technology
  • 4th Generation High Frequency Waveguide
  • D2 Dual Compression Driver
  • ASM Suspension System
  • V5 System Integration
System Type 3-Way High Directivity Line Array Element with D2 Technology
Frequency Range (-10dB) 60 Hz – 20 kHz (Preset: VTX V20)
Horizontal Coverage (-6 dB) 105 degrees nominal (300 Hz - 16 kHz)
Maximum Peak Output 139 dB (Preset: VTX V20)
System Amplification Crown Audio I-Tech HD
Nominal Impedance powered: LF: 2x 8ohms, MF: 8ohms, HF: 8ohms; Passive: LF: 16ohms, MHF: 8ohms

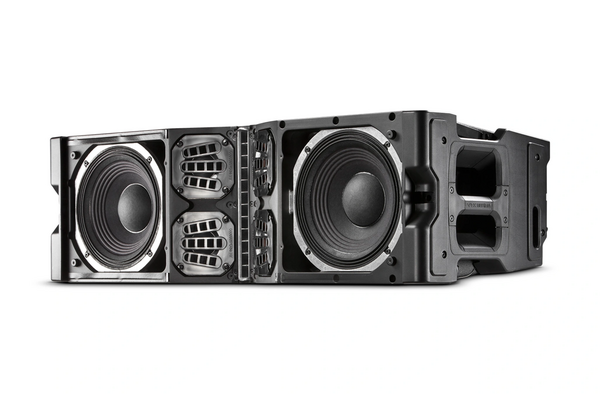

LF Driver (2) JBL 2261H 10-inch Neodymium Differential Drive woofer
MF Driver (4) JBL 2164H 5-inch Neodymium mid-range woofer
HF Driver (3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Enclosure Cast aluminum front baffles and HF waveguide, Finnish birch plywood, black DuraFlex finish, integral recessed handles
Inter-enclosure Angle 0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
