VTX-V25-AF | VTX V25 ARRAY FRAME - TOURING FOR SUSPENDING OR GROUND STACKING VTX V25 OR VTX S28 ENCLOSURES.
VTX-V25-AF
VTX V25 ARRAY FRAME - TOURING FOR SUSPENDING OR GROUND STACKING VTX V25 OR VTX S28 ENCLOSURES.
VTX-V25-AF
VTX V25 ARRAY FRAME - TOURING FOR SUSPENDING OR GROUND STACKING VTX V25 OR VTX S28 ENCLOSURES.
- UM : EA

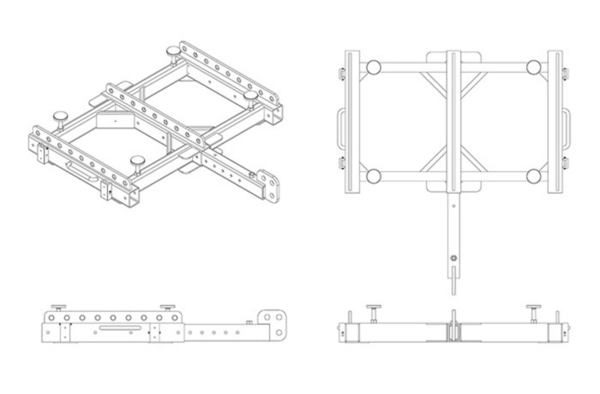

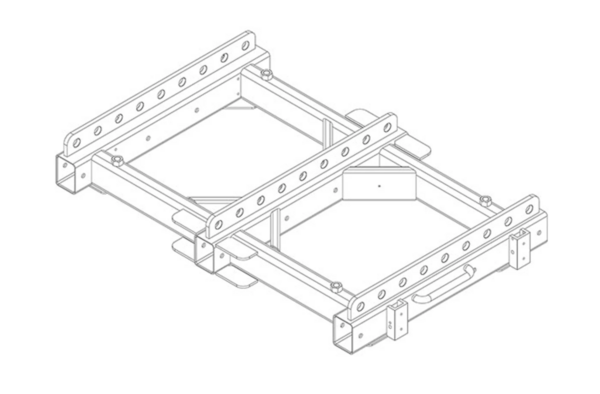

Array Frame used for suspending or ground stacking VTX V25 series enclosures. The VTX-V25-AF is also compatible with the VTX S28 dual 18” subwoofer enclosures. Includes height-adjustable leveling feet for ground stack applications. Optional VTX-V25-AF-EB extension bar available.Features:
Compatible with VTX V25, VTX V25-CS, VTX V25-II, VTX V25-II-CS and VTX S28
9 pick points available for single point suspension
Optional Extension Bar available
Flexible front-to-back or side-by-side pick point options
Supports up to 24 cabinets (array geometry dependent)
Can be used for ground stack applications
Pick point shackle size: 5/8” or 3/4”
Included:
1 x VTX-V25-AF
4 x height-adjustable leveling feet for ground stack applications
4 x Quick Release Pins (QRP) for securing top enclosure to the frame
Features:
- Compatible with VTX V25, VTX V25-CS, VTX V25-II, VTX V25-II-CS and VTX S28
- 9 pick points available for single point suspension
- Optional Extension Bar available
- Flexible front-to-back or side-by-side pick point options
- Supports up to 24 cabinets (array geometry dependent)
- Can be used for ground stack applications
- Pick point shackle size: 5/8” or 3/4”
